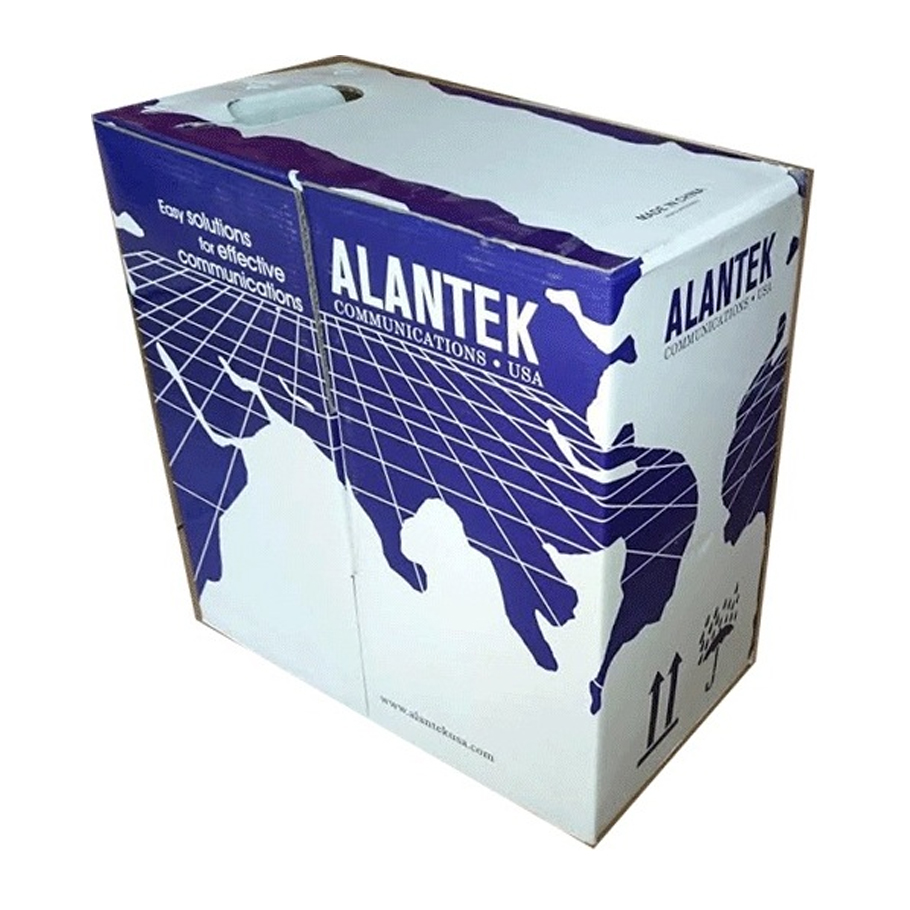

Cáp Alantek Cat5e UTP lõi mềm cho thang máy (301-100P8E-DSBU)
Part Number: 301-100P8E-DSBU
- Cáp lõi mềm dùng cho camera IP trong thang máy.
- 305m/cuộn.
- Tiêu chuẩn: ISO 11801, TIA/EIA 568B, UL444.
Specifications
- Conductor
o Material: Stranded Bare Copper.
o Size: 24 AWG x 4 Pair.
o Construction: 7/0.203 ± 0.008mm.
- Insulation
o Material: HDPE
o Min. Ave. Thickness: 0.15 mm.
o Min. Thickness at any point: 0.14 mm.
o Diameter: 0.09 ± 0.05 mm.
- Core Assembly
o Core Twist: 2 core twist.
o Assembly Pair: 4 pair assembly.
- Jacket
o Material: PVC.
o Thickness: 0.50 ± 0.2 mm.
o Min. Thickness at any point: 0.48 mm.
o Diameter: 5.6 ± 0.15 mm.
Max. Tensile Load (Installation): 100N.
- Sản xuất tại Trung Quốc.
