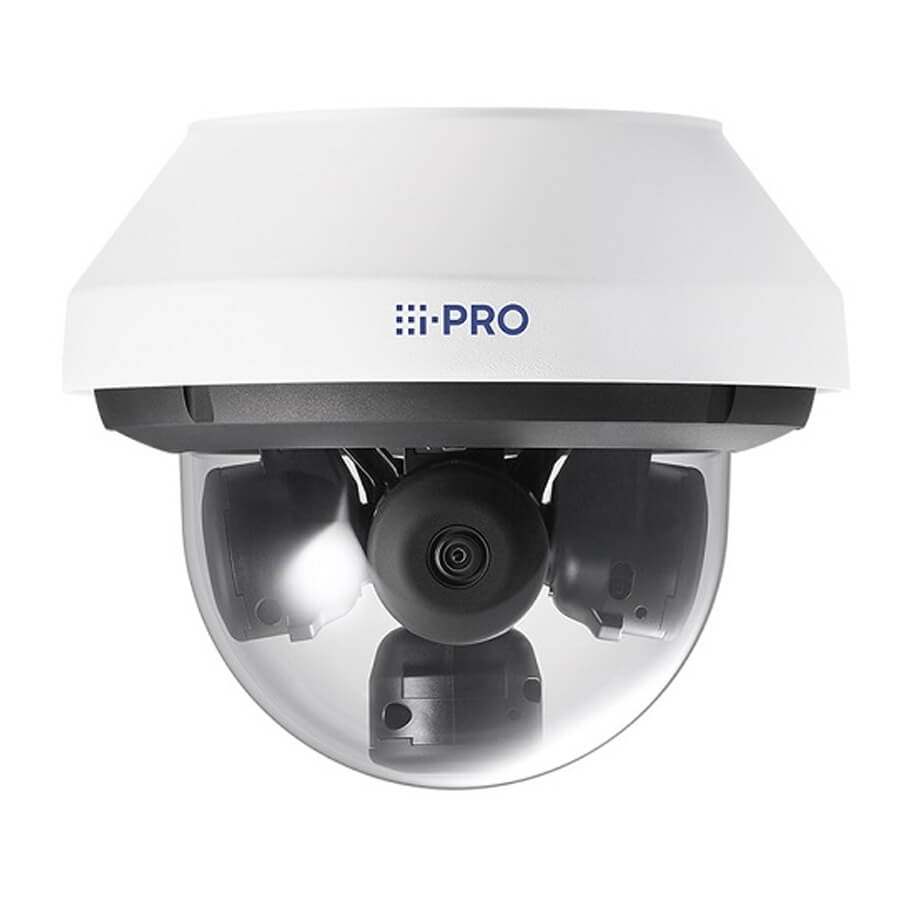

Camera IP Multi-Directional 2.0 Megapixel I-PRO WV-S8531N
- Cảm biến hình ảnh: 1/2.8 type CMOS image sensor.
- Độ phân giải: 2.0 megapixels.
- Độ nhạy sáng tối thiểu:
+ Color: 0.05 lx, BW: 0.03 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11);
+ Color: 0.003 lx, BW: 0.002 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11).
- Hỗ trợ các tính năng camera: BLC, HLC, DNR, AGC, ICR, Super Dynamic 120dB.
- Hỗ trợ tính năng iA (intelligent Auto).
- Zoom quang: 2.5x.
- Hỗ trợ H.265 Smart Coding.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.05 lx, BW: 0.03 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color: 0.003 lx, BW: 0.002 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On / Off |
| Maximum Shutter | 30 fps mode: Max.1/10000s to Max.16/30s 25 fps mode: Max.1/10000s to Max.16/25s |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB typ. (Super Dynamic : On, level : 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), High light compensation (HLC), Fog compensation, Digital noise reduction |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Privacy Zone | On / Off, up to 8 zones available |
| Upside-down | On / Off |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Adjusting angle | Camera 1, 2, 3 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : +30 ° to + 80 ° Azimuth (YAW) angle : ±50 ° Camera 4 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : –15 ° to + 80 ° Azimuth (YAW) angle : ±50 ° *The above is the adjustable range of a single camera. The adjustable range of each camera varies according to the positional relationship with other cameras. |
| Lens | |
| Zoom Ratio | 2.5x Optical zoom (Motorized zoom / Motorized focus) 7.5x Extra Optical Zoom (when resolution is 640x360) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 2.9 mm – 7.3 mm {1/8 inches - 7/32 inches} |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0 (TELE) |
| Focus range | 1.5 m {4.92 feets} – ∞ |
| Angular Field of View | [16 : 9] Horizontal : 45 ° (TELE) – 104 ° (WIDE) Vertical : 25 ° (TELE) – 58 ° (WIDE) |
| DORI | |
| Detect (25ppm / 8ppf) | Wide: 30 m / 98.4 ft, Tele: 92.7 m / 304.2 ft |
| Observe (62.5ppm / 19ppf) | Wide: 12 m / 39.4 ft, Tele: 37.1 m / 121.7 ft |
| Recognize (125ppm / 38ppf | Wide: 6 m / 19.7 ft, Tele: 18.5 m / 60.8 ft |
| Identify (250ppm / 76ppf) | Wide: 3 m / 9.8 ft, Tele: 9.3 m / 30.4 ft |
| Browser GUI | |
| Camera Control | Brightness |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX / 1000Base-T, RJ45 connector |
| Resolution | [16 : 9 mode] *Cannot be changed. 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port(AUTO) / Unicast port(MANUAL) / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL / TLS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLTP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL / TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLTP |
| Maximum concurrent access number | Up to 24 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC/SD card : i-PRO 32 GB*, 64 GB**, 128 GB**, 256 GB**, 512GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF® Profile | G / S |
| Alarm | |
| Alarm Source | VMD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE+ (IEEE802.3at compliant): DC 54V 390 mA, Approx. 22 W(Class4 device) |
| Ambient Operating Temperature | –40 °C to +60 °C {–40 °F to +140 °F} {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Dehumidification Device | Rosahl element |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | When using the attachment plate only : ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)}, Dome radius 80 mm {3-5/32 inches} |
| Mass (Approx.) | When using the attachment plate only : Approx. 2.7 kg {5.95 lbs} |
| Finish | Main body : Aluminum die cast, i-PRO white, Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome cover : Polycarbonate resin (with ClearSight coating), Clear |
- Bảo hành: 12 tháng.
