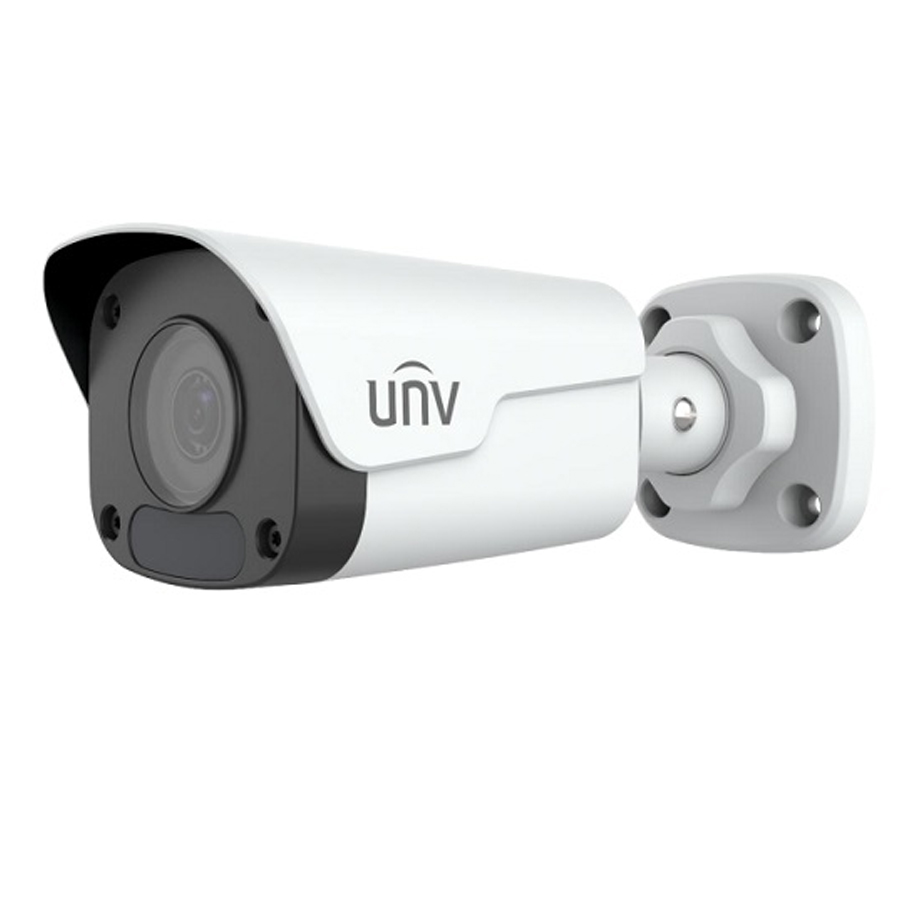

Camera IP hồng ngoại 4.0 Megapixel UNV IPC2124LB-SF40KM-G
- UNV IPC2124LB-SF40KM-G là dòng camera IP hồng ngoại 4.0 Megapixel hỗ trợ công nghệ nén băng thông U-code.
- Cảm biến hình ảnh: 1/3 inch progressive scan, CMOS.
- Độ phân giải: 4.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ống kính: 2.8mm and 4.0mm @2.0, Fixed-focal.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: Colour: 0.01Lux (F2.0, AGC ON)/ 0Lux with IR on.
- Hỗ trợ chức năng chống nhiễu 3DNR, chống ngược sáng DWDR.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ tiêu chuẩn Onvif.
- Chức năng cấp nguồn qua mạng PoE (Power over Ethernet).
- Nguồn điện: DC12V (±25%).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/3 inch, 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 79.0° |
| Angle of View (V) | 42.3° |
| Angle of View (O) | 85.1° |
| Illuminator | |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560 x 1440), Max 25fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), Max 30fps Sub Stream: 4CIF (704 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) | 165 × 63 × 62mm |
| Weight | 0.39kg |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | Ingression protection: IP67 |
- Bảo hành: 2 năm.
