0916 287 068 Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Vision QND-7012R
Trang Chủ >>
Camera quan sát >> Camera IP Hanwha Vision >> Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Vision QND-7012R
Mã số:02066552

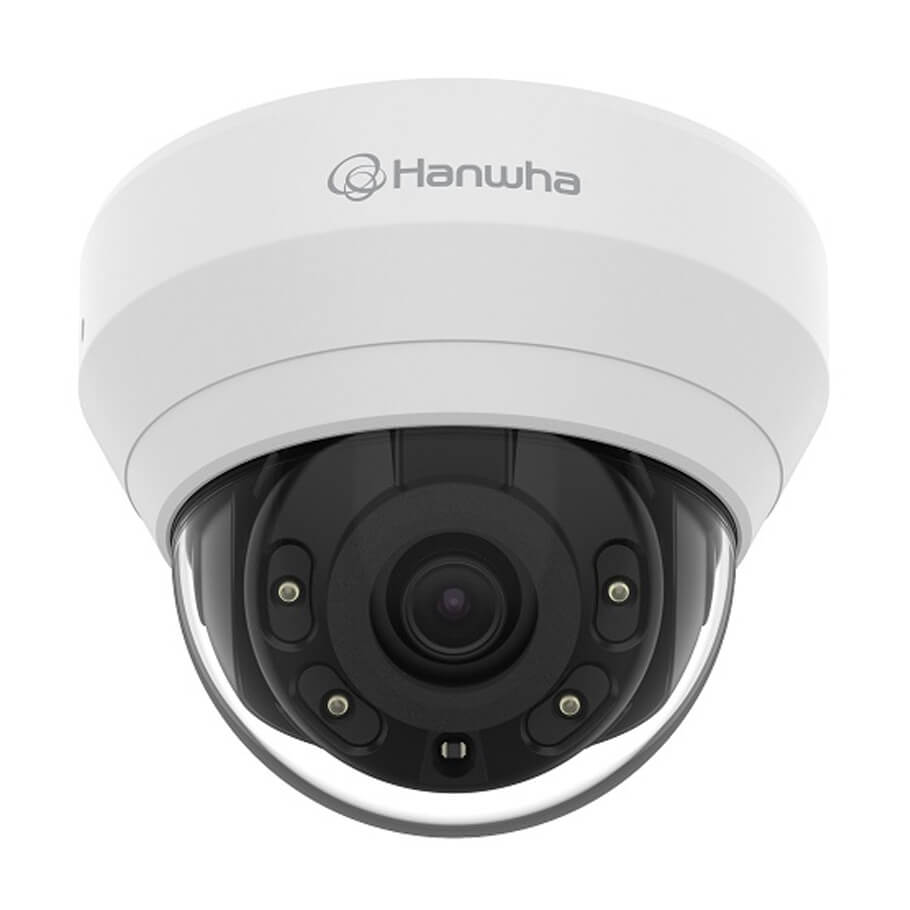

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Vision QND-7012R
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 4.0 Megapixel.
- Độ nhạy sáng: Color 0.15Lux (F2.0, 1/30sec), B/W 0Lux (IR LED On).
- Ống kính: 2.8mm.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tầm quan sát hồng ngoại: 20 mét.
- Tích hợp Mic.
- Hỗ trợ chức năng Motion detection, Tampering, Defocus detection.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng 128GB.
- Hỗ trợ cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| Model | QND-7012R |
| Video | |
| Imaging Device | 1/3 inch 2MP CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Frame rate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color: 0.15Lux (F2.0, 1/30sec) B/W: 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 107.5˚, V: 59.7˚, D: 122.0˚ |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| Audio In | Built-in MIC |
| IR Viewable Length | 20m |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Operating Temperature / Humidity | -10˚C~+55˚C (+14˚F~+131˚F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.9W, typical 6.1W 12VDC: Max 7.1W, typical 5.1W |
| Color / Material | White / Plastic |
| Dimensions | Ø110.0 x 86.0mm |
| Weight | 255g |
- Bảo hành: 24 tháng.
Giá: 3.640.000 VND
(Đã bao gồm VAT)
