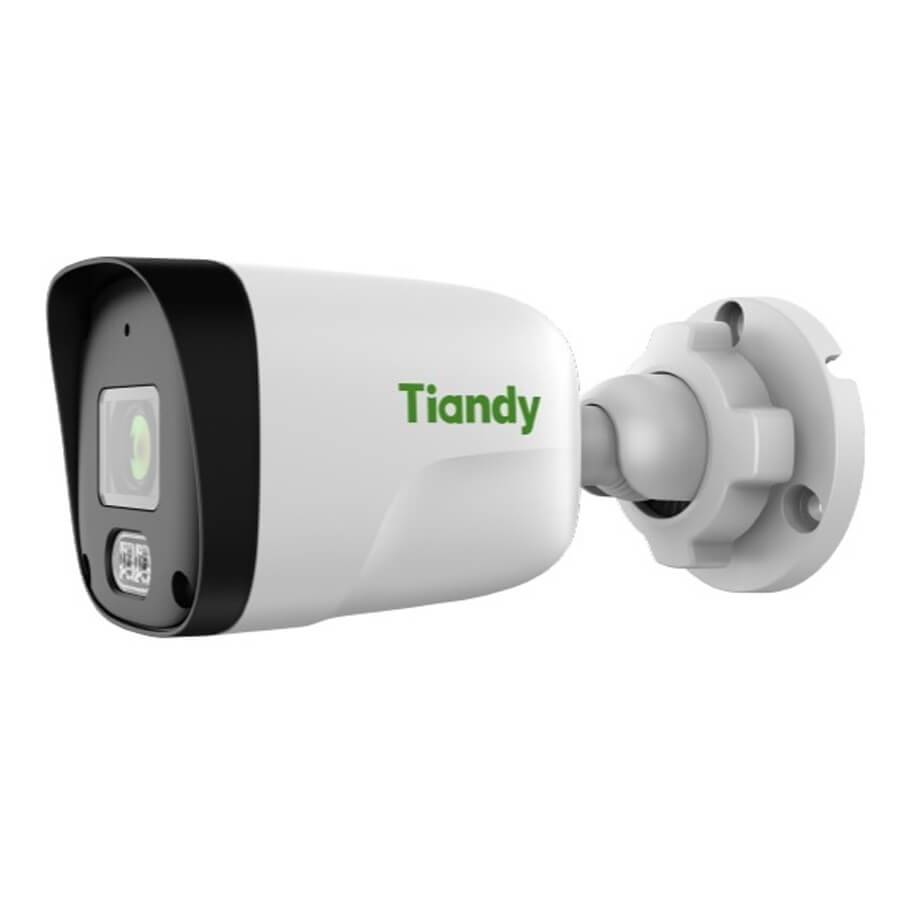

Camera IP hồng ngoại 2.0 Megapixel TIANDY TC-C321N (I3/E/Y/4mm/V2.0)
- Cảm biến hình ảnh: 1/3” CMOS.
- Độ phân giải: 2MP,1920×1080@30fps.
- Chuẩn nén video: S+265, H.265, H.264B, H.264M, H.264H.
- Ống kính: 4mm.
- Độ nhạy sáng: Color: 0.02Lux@(F2.0, AGC ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 30 mét.
- Tích hợp micro.
- Điều kiện hoạt động: -30℃ đến 60℃, độ ẩm tối đa 95%.
- Hỗ trợ cấp nguồn qua mạng PoE.
- Tiêu chuẩn chống bụi và nước: IP67 (camera thích hợp sử dụng trong nhà và ngoài trời).
- Vật liệu: Vỏ nhựa.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/3' CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >47.8dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 78.3°(H); 44.1°(V); 89.3°(D) |
| DORI Distance | Detect:59.26m Observe:23.52m Recognize:11.85m Identify:5.93m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL: 25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Linkage Method | Alarm Output |
| Network | |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | PoE: IEEE 802.3af, Max. 3W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Dimensions | 140(L) x 60(W) x 60(H)mm |
| Gross Weight | 0.2kg |
