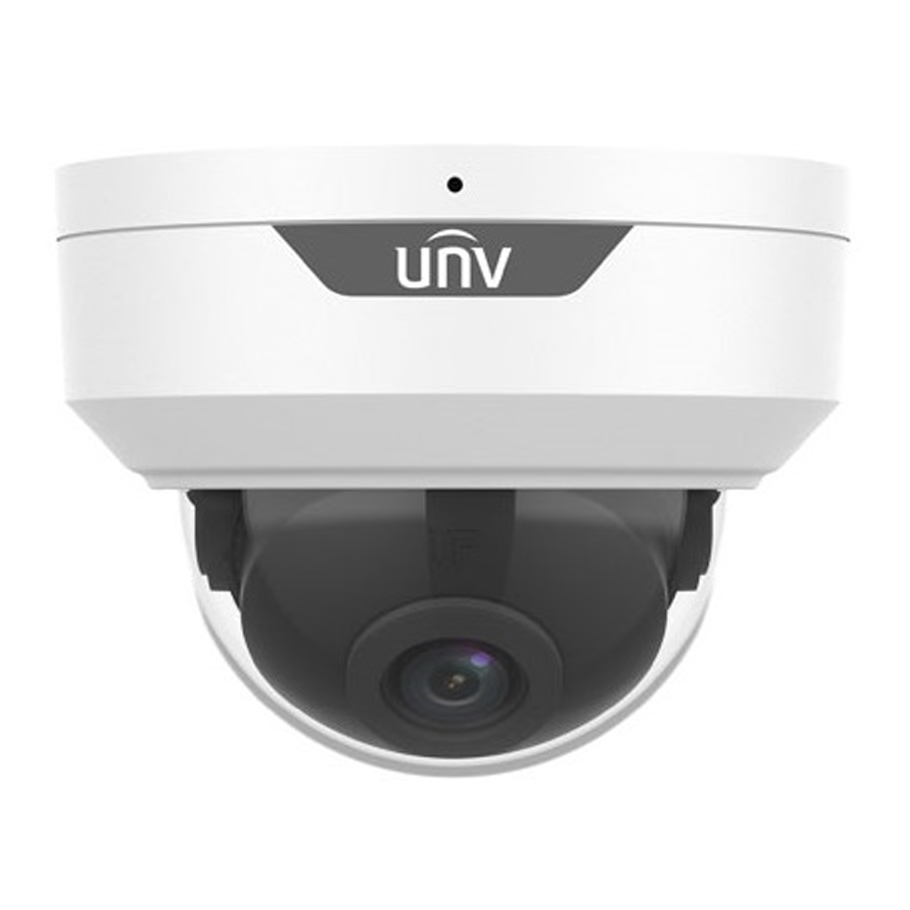

Camera IP Dome hồng ngoại không dây 2.0 Megapixel UNV IPC322LB-AF28WK-G
- Cảm biến hình ảnh: 1/2.9” progressive scan CMOS.
- Độ phân giải: 1080P (1920*1080), Max 30fps.
- Chuẩn nén hình ảnh: Ultra265/ H.265/ H.264/ MJPEG.
- Hỗ trợ 2 luồng video.
- Ống kính cố định: 2.8mm.
- Góc quan sát: 101.1°.
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ công nghệ nén băng thông U-code. Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng DWDR.
- Hỗ trợ Wifi chuẩn IEEE 802.11b/g/n.
- Tích hợp micro.
- Hỗ trợ khe cắm thẻ nhớ 128GB.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V (± 25%).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Camera | |
| Sensor | 1/2.9 inch, progressive scan , 2.0 megapixel, CMOS |
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| Adjustment angle | Pan: 0°~352°, Tilt: 0°~70° , Rotate: 0°~350° |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 2.8mm@F2.0, Fixed-focal |
| Lens Mount | M12 |
| Angle of view(H) | 101.1° |
| Angle of View (V) | 55.0° |
| Angle of View (O) | 111.0° |
| Illuminator | |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Wireless Range | Up to 120 m (The performance varies based on actual environment) |
| Channel Bandwidth | 20 MHz Support |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
| Power | DC 12V±25% Power consumption: Max 4.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ109 x 83 mm (Ø4.29” x 3.3”) |
| Weight | 0.32 kg (0.71 lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) |
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 |
Xuất xứ: Trung Quốc.
