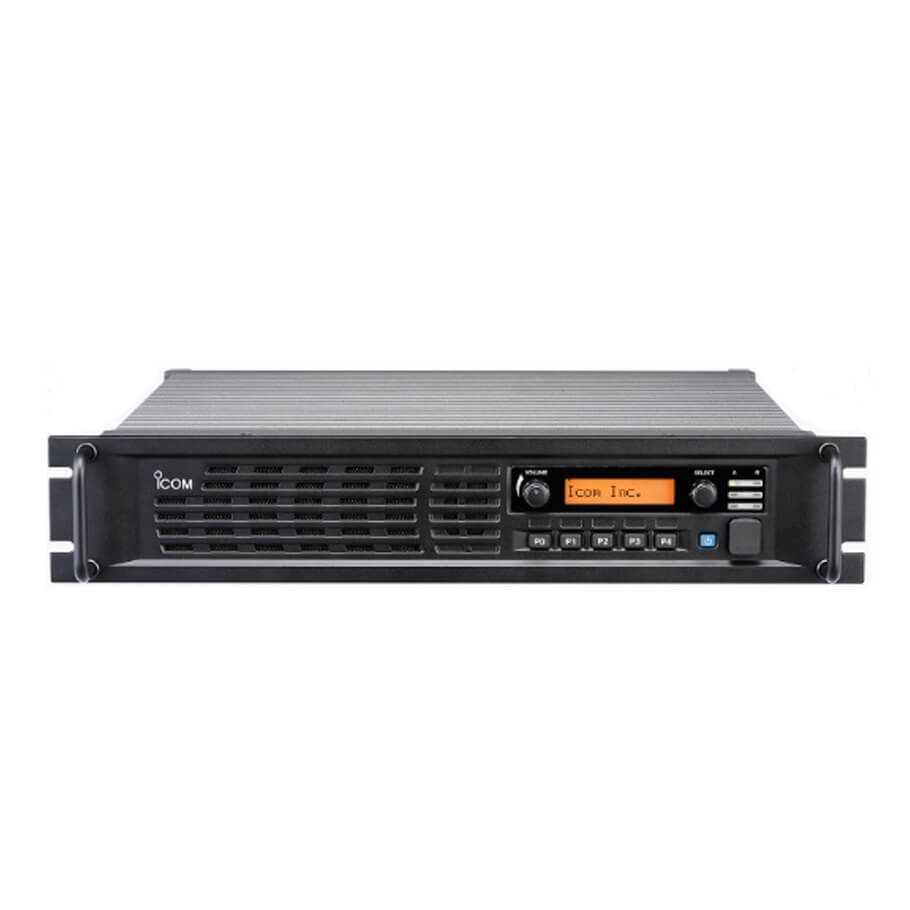

Bộ phát lặp bộ đàm ICOM IC-F5200H VHF
- Tần số: 136-174 MHz.
- Số kênh: 32 kênh.
- Công suất: 50W.
- Kích thước (W x H x D): 483 × 88 × 360 mm.
- Trọng lượng: 10kg.
Thông số kỹ thuật
| GENERAL | |
| Frequency coverage | 136-174 MHz |
| Number of channels | Max. 32 channels |
| Channel spacing | 6.25/12.5/20/25 kHz |
| Type of emission | 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/F1D/F3E |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω (Type-N × 2) |
| Operating temperature range | –30˚C to +60˚C; –22˚F to +140˚F |
| Power supply voltage | 13.2 V DC |
| Current drain TX 50 W (at 13.6 V DC) RX Max. audio Stand-by |
11 A 1.2 A 550 mA typ. (at LCD backlight OFF) |
| Dimensions (W × H × D) | 483 × 88 × 360 mm |
| Weight | 10 kg (approx.) |
| TRANSMITTER | |
| Output power | 50 W (adjustable to 5 W) 100% duty cycle (at 20–35˚C, 24 hours) |
| Max. frequency deviation | ±5.0/±4.0/±2.5 kHz (W/M/N) |
| Spurious emissions | 0.25 μW (≤1 GHz), 1.0 μW (>1 GHz) |
| Audio harmonic distortion | 1% typ. (40% deviation) |
| Intermodulation attenuation | 40 dB min |
| Digital FSK error | 5% Max |
| Microphone impedance | 600 Ω (8-pin modular) |
| RECEIVER | |
| Sensitivity | Analog: –10 dBμV max. (12 dB SINAD) Digital: 0 dBμV emf. max. (1% BER) |
| Adjacent channel selectivity (W/M/N) (Digital) |
86/83/75 dB typ. 67 dB typ |
| Spurious response (W/M/N) (Digital) |
80 dB 90 dBμV emf |
| Intermodulation rejection (W/M/N) (Digital) |
75/75/73 dB typ. 76 dBμV emf typ. |
| Audio output power | 3.5 W min. (5% distortion, 4 Ω load) |
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8inch)/4 Ω |
- Sản xuất tại Nhật Bản.
- Bảo hành: 24 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
