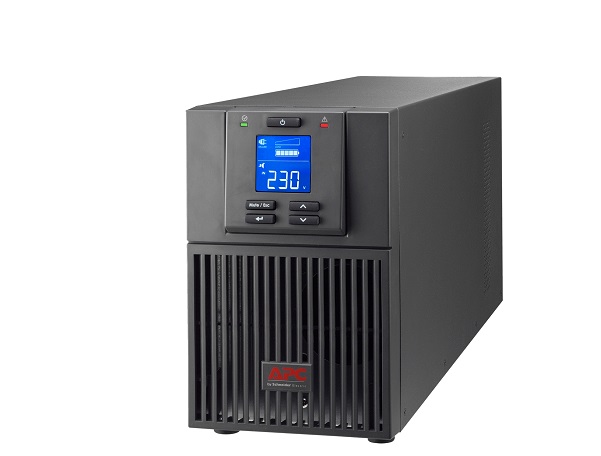

Bộ lưu điện UPS APC SRV3KIL-E
- Output power capacity: 3000VA/ 2700W.
- Topology: Double Conversion Online.
- Waveform type: Sine wave.
- Output Connections: (6) IEC 60320 C13, (1) IEC 60320 C19.
- Input Connections: IEC 60320 C20.
Đặc tính kỹ thuật
| Power rating | 3000 VA/2700 W |
| Input | |
| Nominal input voltage | 230V |
| Input voltage range at full load (40% load) | 180 - 300 V (105 – 300 V) |
| Input frequency | 40 - 70 Hz auto-selecting |
| Input connection | IEC 60320 C20 |
| Output | |
| Nominal output voltage | 230V (220V, 240V user selectable) |
| Output frequency | 50/60 Hz ± 3 Hz (On Mains) or 50/60 Hz ± 0.1 Hz (On Battery) |
| Topology | Double-conversion on-line |
| Waveform type | Pure sine wave |
| Effciency: Double-conversion mode (typical) | Up to 90% |
| Effciency: Double-conversion mode (typical) | Up to 93% |
| Output connections | (6) IEC 60320 C13, (1) IEC 60320 C19 |
| Battery and Runtime | |
| Battery type | Sealed maintenance free valve regulated lead acid battery, leak proof |
| Battery capacity | 2 strings of 12V 9 Ah (6) |
| Battery voltage | 72 Vdc |
| External battery pack | SRV72BP-9A |
| Typical recharge time | 4 hours to recover 90% of capacity |
| Runtime at half load (mins) | 31 |
| Runtime at full load (mins) | 12 |
| Communications and management | |
| Interface ports | Serial RS-232, USB (Type B), Intelligent Slot |
| Control panel | LED indicators, multi-function LCD, status and display console |
| Emergency power off (EPO) | Yes (NC contacts) |
| Physical | |
| Dimensions W x H x D (mm)(power module) | 145 x 238 x 400 |
| Dimensions W x H x D (mm) (battery pack) | 190 x 336 x 425 |
| Net weight (kg) (power module) | 7.9 |
| Net weight (kg) (battery pack) | 38 |
| Color | RAL 7010 |
| Environment | |
| Operating temperature | 0 to 40°C |
| Relative humidity | 0 to 95% non-condensing |
| Operating elevation | 0 to 3,000 m at 100% load |
| Audible noise at 1m from unit | Less than 53 dBA |
| International protection code | IP20 |
| Conformance | |
| Regulatory approvals | CE, UKCA, TISI, IEC 62040-1, IEC 62040-2 |
- Công nghệ Nhật Bản.
- Bảo hành: 3 năm.
