Aruba AP-303 (RW) Unified Access Point JZ320A

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng HP >> Aruba AP-303 (RW) Unified Access Point JZ320A
Mã số:04302328

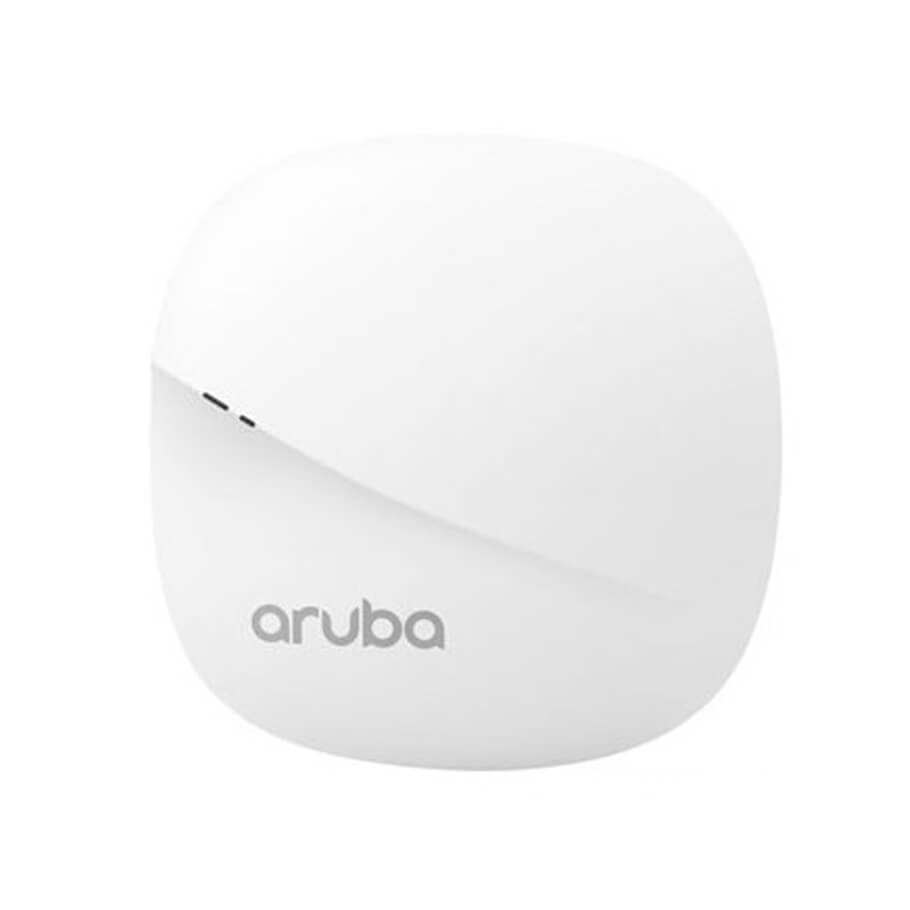

Aruba AP-303 (RW) Unified Access Point JZ320A

Aruba AP-303 (RW) Unified Access Point JZ320A

- Aruba 303 series wireless access points.

- Low-cost 802.11ac Wave 2 (Wifi 5) enterprise connectivity.


- Up to 1.2Gbps aggregate peak data rate

- Daisy-chain another AP using the secondary PoE-out port

- Integrated Zigbee and Bluetooth 5 radio for IoT connectivity

- Resolve sticky client issues with MU-MIMO-aware ClientMatch.

- Participates in Aruba's Dynamic Segmentation solution.


- Hardware Variants: Single Ethernet.

- Wifi Radio specifications:

   + AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO.

   + 5GHz (radio 0):

     + Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2SS VHT80 client devices

     + Two spatial stream Multi User (MU) MIMO for up to 867Mbps wireless data rate to two 1SS MU-MIMO capable client devices simultaneously

   + 2.4GHz (radio 1):

     + Two spatial stream Single User (SU) MIMO for up to 300Mbps wireless data rate to individual 2SS HT40 client devices.

   + Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio.

   + Supported frequency bands (country-specific restrictions apply):

     + 2.400 to 2.4835 GHz.

     + 5.150 to 5.250 GHz

     + 5.250 to 5.350 GHz

     + 5.470 to 5.725 GHz

     + 5.725 to 5.850 GHz

- Wifi Antennas

   + Two vertically polarized dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.3dBi in 2.4GHz and 5.8dBi in 5GHz

   + The antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

- Combining the patterns of both antennas per radio, the peak gain of the average (effective) pattern is 2.1dBi in 2.4GHz and 5.7dBi in 5GHz.

- Other Interfaces

   + E0: One 10/100/1000Base-T Ethernet netwwork interface (RJ-45)

     + Auto-sensing link speed and MDI/MDX

     + 802.3az Energy Efficient Ethernet (EEE)

     + PoE-PD: 48VDC (nominal) 802.3af/at/bt PoE

   + DC power interface

   + E1: One 10/100/1000Base-T Ethernet network interface (RJ-45).

     + Auto-sensing link speed and MDI/MDX.

     + 802.3az Energy Efficient Ethernet (EEE)

     + PoE-PSE (output): 48VDC (nominal) 802.3af/at PoE.

   + Bluetooth Low Energy (BLE) radio.

   + Zigbee 802.15.4 radio.

   + Visual indicators (tri-color LEDs): for System and Radio status.

   + Reset button: factor reset (during device power-up), LED mode control (normal/off).

   + Serial console interface (propriately, µUSB physical jack)

   + Kensington security slot.

- Power Sources and Consumption

   + The AP supports direct DC power and Power over Ethernet (PoE).

   + When both power sources are available, DC power takes priority over PoE.

   + Power sources are sold separately

   + Direct DC source: 12VDC nominal, +/-5%

   + DC power interface accepts 2.1/5.5mm center-positive circular plug with 9.5mm length.

   + Power over Ethernet (PoE): 48VDC (nominal) 802.3af compliant source.

   + Maximum (worst-case) power consumption: 10.1W (PoE) or 8.8W (DC).

   + Maximum (worst-case) power consumption in idle mode: 4.2W (PoE) or 4.0W (DC).

- Dimensions (WxDxH): 150 x 150 x 35 mm.

- Weight: 260g.

- Hàng chính hãng HP.

- Bảo hành: 12 tháng.

Giá: 6.600.000 VND (Đã bao gồm VAT)
