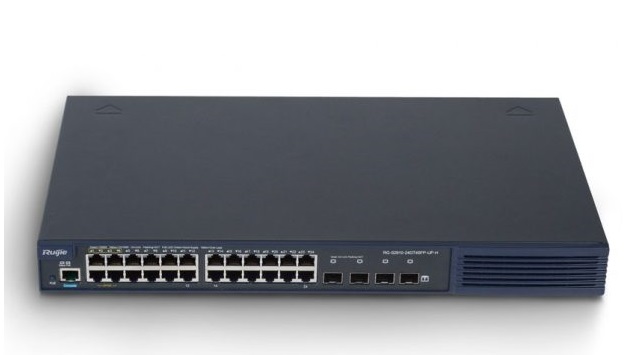

24-port Gigabit PoE+ with 4 SFP Switch RUIJIE RG-S2910-24GT4SFP-UP-H(V3.0)
- 24 10/100/1000BASE-T ports for downlink and 4 Gigabit SFP ports (non-combo) for uplink.
- Support HPOE (Port 1~4), PoE+, PoE, 1 console port
- 24 cổng 10/100/1000BASE-T PoE/PoE+, tổng công suất 370W
- 4 cổng SFP ports (Non-Combo)
- Tốc độ chuyển mạch: 256Gbps
- Tốc độ chuyển gói tin: 42Mpps/96Mpps
- Nguồn điện: AC 100~240V, 50/60Hz
- Kích thước: 440×260×44 mm
- Nhiệt độ hoạt động: 0°C~50°C
- 370W PoE/PoE+/HPoE budget output power
Đặc tính kỹ thuật
| Model | RG-S2910-24GT4SFP-UP-H(V3.0) |
| Ports | 24 10/100/1000BASE-T ports (PoE/PoE+), 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE, AC |
| Management Ports | 1 console port |
| Switching Capacity | Up to 256Gbps |
| Packet Forwarding Rate | 42Mpps/96Mpps |
| PoE | IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt |
| Port Buffer | 1.5MB |
| ARP Table | 1 |
| MAC Address | 16K |
| Routing Table Size (IPv4/IPv6) | 500 (IPv4/IPv6) |
| ACL Entries | In: 1500 Out: 500 |
| VLAN | Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, IP subnet-based VLAN, GVRP |
| QinQ | Basic QinQ, Flexible QinQ |
| Port Mirroring | Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Manyto-one mirroring; One-to-many mirroring; Cross-device traffic mirroring; RSPAN; ERSPAN |
| Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard |
| DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
| Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
| SDN | OpenFlow |
| VSU | - VSU Stack Members: Up to 9 stack members - VSL: 4 BASE-X ports can be configured as VSL |
| Zero Configuration | CWMP(TR069) |
| L2 Features | MAC, VLAN, Basic QinQ, Felix QinQ, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 |
| Layer 2 Protocols | IEEE802.1d, IEEE802.1w, IEEE802.1s, IGMP Snooping v1/v2/v3 |
| Layer 3 Features | ARP, IPv4/v6 |
| IPv4 Features | Ping, Traceroute |
| IPv6 Features | 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head |
| Basic IPv6 Protocols | IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert |
| IPv4 Routing Protocols | Static Routing, RIP |
| IPv6 Routing Protocols | Static Routing, RIPng |
| G.8032 | Support |
| ACL | Standard IP ACL, Extended IP ACL, Extended MAC ACL, Expert ACL, ACL80, IPv6 ACL, ACL Logging, ACL Counter, ACL Remark, Global ACL, ACL Redirect |
| QoS | 802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; Input/ output port-based speed limit; Each port supports 8 queue priorities, Dynamic QoS |
| IPv6 ACL | Support |
| Reliability | GR for RIP |
| EEE Format | Support IEEE 802.3az standard |
| Security | Binding of the IPv6 and MAC address; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Gateway anti-ARP spoofing; Hierarchical management by administrators and password protection; RADIUS and TACACS+; SSH V1.5 and SSH V2.0; IP source guard; CPP, NFPP; Port protection |
| Manageability | SNMPv1/v2c/v3, RMON (1, 2, 3, 9), SSH, Syslog/ Debug, NTP/ SNTP, FTP, TFTP, Web |
| Smart Temperature Control | Temperature monitoring and alert |
| Dimensions (W x D x H) | 440×260×44 mm |
| Rack Height | 1RU |
| MTBF | 361712 hours |
| Lightning Protection | 6KV |
| Power Supply | AC input: Nominal voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50Hz to 60Hz |
| Power Consumption | <460W |
| PoE Power Consumption | Total 370W PoE/PoE+/HPoE budget output power All 24 BASE-T ports support PoE (up to 24 ports) and PoE+ (up to 12 ports) All ports from Port 1-4 support HPoE output power of up to 60W per port |
| Temperature | Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C |
| Humidity | Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH |
| Operating Altitude | -500m to 5,000m |
- Bảo hành: 3 năm.
