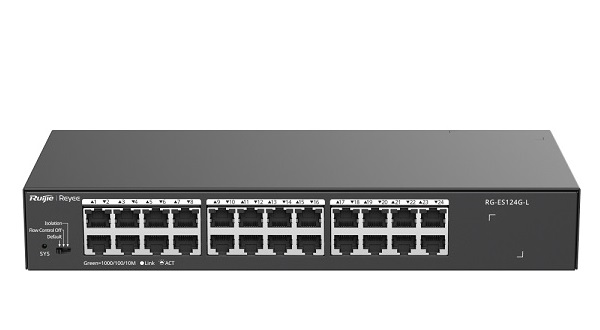

24-Port 10/100/1000Mbps Unmanaged Switch RUIJIE RG-ES124G-L
- 24 cổng 10/100/1000BASE-T.
- Tốc độ chuyển mạch: 48Gbps.
- Tốc độ chuyển gói tin: 35.71Mpps.
- Half-duplex, full-duplex, auto-negotiation mode, support auto MDI/MDIX.
- Hỗ trợ 4 mode: Flow Control On, Flow Control Off, Port Isolation, Extend Data Transmission-10Mbps.
- Nguồn điện: 100-240V AC.
- MAC: 8K
- Nhiệt độ hoạt động: 0°C~45°C.
- Kích thước: 280 x 126 x 44 mm.
- Chất liệu: Vỏ kim loại.
- Hỗ trợ gắn tủ Rack.
Thông số kỹ thuật
| Model | RG-ES124G-L |
| Downlink Ports | 24 x 10/100/1000BASE-T ports |
| Uplink Ports | None |
| PoE/PoE+ ports | None |
| Max. PoE budget | None |
| Layer Type | Unmanaged |
| Switching capacity | 48 Gbps |
| Forwarding rate | 35.7 Mpps |
| MAC address table | 8000 |
| Dimensions (W x D x H) | 280 x 125 x 43.6 mm |
| Weight | 1.86 kg |
| Auto/Full/Half Duplex Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| PoE Watchdog Interval | None |
| Flow Control | Yes |
| Port Isolation | Yes |
| Power Consumption | 14 W |
| Power Supply | 100 V AC to 240 V AC, 0.6 A |
| Surge Protection | 4 kV |
| Fan | Fanless |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| MTBF | > 200,000 hrs |
- Bảo hành: 3 năm.
