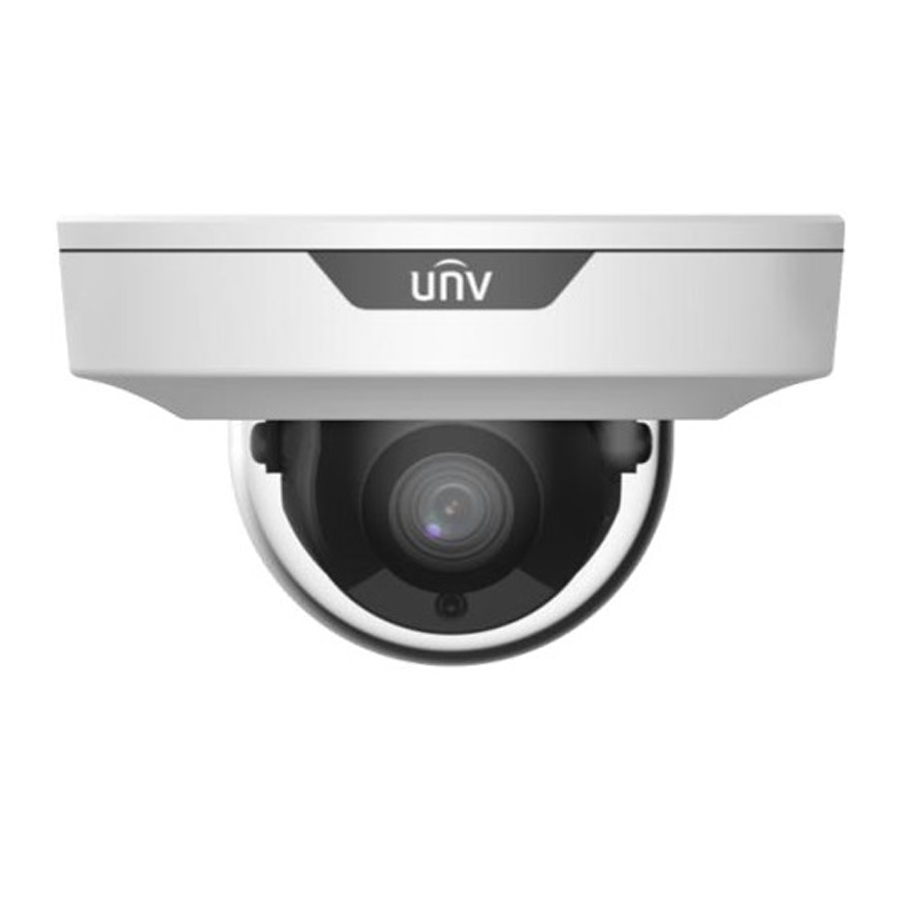

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

Trang Chủ >> Camera quan sát >> Camera IP UNV >> Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F
Mã số:02940950
Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

- Camera IP Dome 4MP, chuẩn Ultra265.

- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.

- Chuẩn nén hình ảnh: Ultra265/H.265/H.264/MJPEG.

- Ống kính: 2.8mm.

- Hỗ trợ 3 luồng video.

- Tầm quan sát hồng ngoại: 30 mét.

- Độ nhạy sáng: 0.01Lux (F2.0, AGC ON).

- Công nghệ nén băng thông U-code.

- Hỗ trợ các chức năng: Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng thực WDR 120db.

- Hỗ trợ micro trên camera.

- Hỗ trợ cổng Alarm in/out 1/1.

- Hỗ trợ khe cắm thẻ nhớ 256GB.

- Chuẩn Onvif quốc tế.

- Hỗ trợ tên miền miễn phí trọn đời.

- Nguồn cấp: DC12V (±25%) và PoE.

- Chất liệu vỏ: Kim loại + Nhựa.

Đặc tính kỹ thuật

Model IPC354SR3-ADNPF28-F
Camera
Sensor 1/3 inch, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
Angle of View (H) 95.8°
Angle of View (V) 55.2°
Angle of View (O) 124.5°
Adjustment angle Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/ Outdoor/ Fine Tune/ Sodium Lamp/ Locked/ Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Built-in Mic Supported
Alarm I/O 1/1
Network 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H) Φ108.6 x 61.8mm (Ø4.28” x 2.43”)
Net Weight 0.22kg (0.49lb)
Material Metal + Plastic
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Reset Button Supported

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
