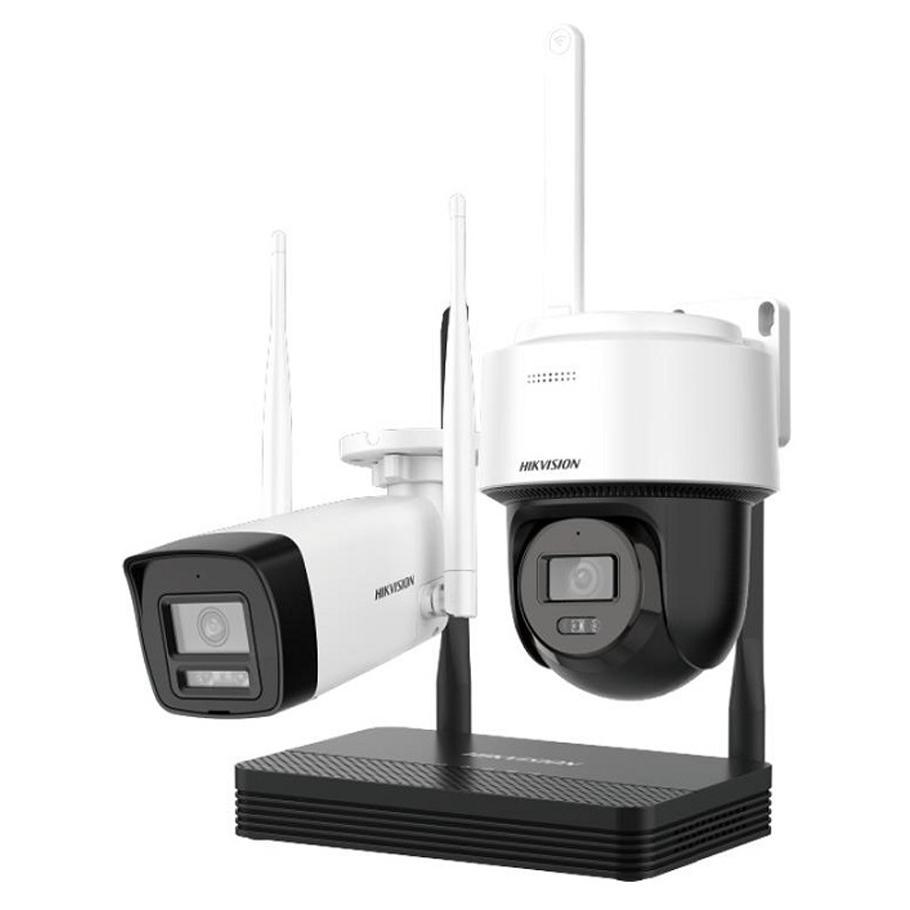

Bộ Kit camera IP Wifi 2.0 Megapixel HIKVISION DS-J142I/NKS422W03H
- Bộ Kit camera IP Wi-Fi chuẩn H.265, bao gồm: 1 Camera IP Wifi DS-2CV1023G2-LIDWFB, 1 đầu ghi hình camera IP Wifi 04 kênh DS-7104NI-S1/W và 1 camera IP Speed Dome Wifi DS-2DE2C200MWG/W.
Đầu ghi camera IP Wifi NVS DS-7104NI-S1/W
- Hỗ trợ kết nối camera wifi lên Hik-connect cực nhanh và dễ dàng (tối đa 4 camera wifi).
- Hỗ trợ khe thẻ nhớ Micro SD lên đến 512GB.
- Hỗ trợ 1 cổng RJ-45 10/100Mbps.
Camera IP Wifi DS-2CV1023G2-LIDWFB
- Độ phân giải: 2MP (1920 × 1080).
- Hỗ trợ kết nối Wi-Fi 6.
- Đàm thoại 2 chiều.
- Cảnh báo chuyển động: Phân tích người và phương tiện.
- Hỗ trợ tầm quan sát hồng ngoại IR và đèn White light màu ban đêm: 30 mét.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Camera IP Speed Dome Wifi DS-2DE2C200MWG/W
- Độ phân giải: 2MP (1920 × 1080).
- Hỗ trợ kết nối Wi-Fi 6.
- Đàm thoại 2 chiều.
- Xoay ngang 0° to 345°, xoay dọc 0° to 80°.
- Cảnh báo chuyển động: Phân tích người và phương tiện.
- Tầm quan sát hồng ngoại IR và đèn White light màu ban đêm: 25 mét.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera DS-2CV1023G2-LIDWFB | |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92° 6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56° |
| Aperture | F2.0 |
| Iris Type | Fixed |
| Lens Mount | M12 |
| Depth of Field | 2.8 mm: 0.8 m~∞ 4 mm: 1.1 m~∞ 6 mm: 2.3 m~∞ |
| DORI | |
| DORI | 2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| IR Wavelength | 850 nm |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432) |
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711(ulaw)/ (AAC-LC) |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wi-Fi | |
| Wi-Fi Protocol | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11n: QPSK, BPSK, 16QAM, 64QAM, 802.11b: CCK, QPSK, BPSK, 802.11g: QPSK, BPSK, 16QAM, 64QAM |
| Transfer Rate | 11n: up to 300 Mbps |
| Image | |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Built-in Microphone | Yes |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), exception |
| Linkage | Notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 25%, 0.55 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, *A switching adapter is included in the package. |
| Material | Plastic |
| Dimension | 260.9 mm × 113.9 mm × 67.4 mm |
| Weight | Approx. 310 g |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| RF | CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G) |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529-2013 |
| NVS DS-7104NI-S1/W | |
| Video and Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 20 Mbps |
| Outgoing Bandwidth | 20 Mbps |
| Decoding | |
| Stream Type | Video, Video & Audio |
| Recording Resolution | 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network | |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Wireless Parameter | |
| Frequency Band | 2.4 GHz |
| Antenna Structure | High gain antenna |
| Transmission Speed | 150 Mbps |
| Transmission Standard | IEEE 802.11b/g/n/ax |
| Auxiliary Interface | |
| SD Card | 32G/64G/128G/256G/512G |
| General | |
| Power Supply | 12 VDC, 1 A |
| Consumption | ≤ 6 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 163 x 125 x 26 mm |
| Weight | ≤ 500 g |
| Others | |
| RESET button | Support |
| Power Indicator | Solid on: Device is powered up; Solid off: Device is powered off or power supply exception occurs; Flickering: Device is being restored |
| Online Indicator | Solid on: Network is connected; Solid off: Network is disconnected or network exception occurs |
| Wi-Fi Indicator | Solid on: Wi-Fi is initializing or there is no data transmission through Wi-Fi; Solid off: Wi-Fi exception occurs; Flickering slowly (on for 2 sec and off for 2 sec ): Wi-Fi is initialized and there is data transmission through Wi-Fi |
| SD Card Indicator | Solid on: SD card is detected; Solid off: No SD card is detected; Flickering: There is data transmission |
| Camera DS-2DE2C200MWG/W | |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.04 Lux @ (F2.0, AGC ON), B/W: 0.01Lux @(F2.0, AGC ON), 0 Lux with IR |
| Lens | |
| Focal Length | 2.8 mm; 4 mm |
| FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92° |
| Aperture | F2.0 |
| Illuminator | |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | White light distance: up to 25 m, IR distance: up to 25 m |
| IR Wavelength | 850 nm |
| PTZ | |
| Movement Range (Pan) | 0° to 345° |
| Movement Range (Tilt) | 0° to 80° |
| Pan Speed | Up to 25°/s |
| Tilt Speed | Up to 20°/s |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Audio | |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; G.711ulaw: 64 Kbps |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Wireless (Wi-Fi) | |
| Wi-Fi Protocols | IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz |
| Image | |
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable rectangle privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Built-in Microphone | 1 built-in microphone |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, *A switching adapter is included in the package. |
| Dimension | Dimension: Ø 131.9 mm × 163.9 mm × 312.6 mm With Package Dimension: 224 mm × 164 mm × 230 mm |
| Weight | Weight: 600g With Package Weight: 900g |
| Material | Plastic |
| Operating Condition | -30 °C to 50 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | |
| Protection | IP66 (IEC 60529-2013) |
| General | |
| Language | English, Ukrainian |
- Xuất xứ: Trung Quốc.
- Bảo hành: 24 tháng.
