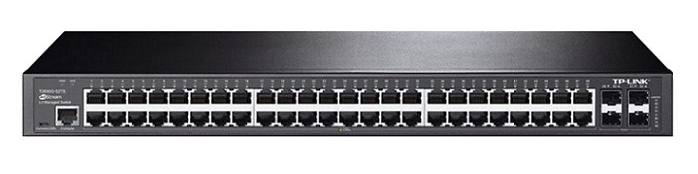

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots TP-Link T2600G-52TS (TL-SG3452)
- 48 cổng RJ45 10/100/100Mbps + 4 slot 1000Mbps SFP.
- QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.
- Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.
- Địa chỉ MAC: 16K.
- Bộ nhớ gói dữ liệu đệm: 1.5MB.
- Nguồn điện: 100 - 240V, 50/60Hz.
- Công suất tiêu thụ: 33.52W.
- Kích thước: 440 x 220 x 44 mm.
- Trọng lượng: 4.5kg.
Đặc tính kỹ thuật
|
Interfaces |
48 10/100/1000Mbps RJ45 |
|
4 1000Mbps SFP |
|
|
Console Port |
1 RJ45 Console Port |
|
1 Micro-USB Console Port |
|
|
L2 Features |
Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group |
|
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
|
|
Loopback Detection |
|
|
Flow Control: 802.3x Flow Control, HOL Blocking Prevention |
|
|
Port Mirroring: One-to-One, Many-to-One, Flow-Based, Tx/Rx/Both |
|
|
L2 Multicast |
Supports 1000 (IPv4, IPv6) IGMP groups |
|
IGMP Snooping: IGMP v1/v2/v3 Snooping, IGMP Fast Leave, Multicast VLAN, IGMP Snooping Querier, IGMP Authentication, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast |
|
|
MLD Snooping: MLD v1/v2 Snooping, MLD Snooping Querier, Fast Leave, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast |
|
|
L3 Features |
16 IP Interfaces: Supports ipv4 interface, supports ipv6 interface |
|
Proxy ARP |
|
|
Static Routing: 48 static routes |
|
|
VLAN |
VLAN Group: Max. 4K VLAN Groups |
|
802.1Q Tagged VLAN |
|
|
MAC VLAN: 256 Groups |
|
|
Protocol VLAN |
|
|
Private VLAN |
|
|
GVRP |
|
|
VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ |
|
|
Voice VLAN |
|
|
Qos |
802.1p CoS/DSCP priority |
|
8 priority queues |
|
|
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR |
|
|
Bandwidth Control: Port/Flow based Rating Limiting |
|
|
Smoother Performance |
|
|
Actions for flows: Mirror (to supported interface), Redirect(to supported interface), Rate Limit, QoS Remark |
|
|
ACL |
Supports up to 300 entries (up to 600 by Access Template) |
|
Time-based ACL |
|
|
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, EtherType |
|
|
Standard IP ACL: Source IP, Destination IP |
|
|
Extended IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/ UDP Port, DSCP/IP TOS |
|
|
Switching Capacity |
104Gbps |
|
Forwarding Rate |
77.4Mpps |
|
MAC Address Table |
16K |
|
Packet Buffer Memory |
1.5MB |
|
Jumbo Frame |
9216 Bytes |
|
Power Supply |
100 - 240V, 50/60Hz |
|
Maximum Power Consumption |
33.52W (220V/50Hz) |
|
Dimensions |
440 x 220 x 44 mm |
|
Weight |
4.5kg |
- Bảo hành: 36 tháng.
