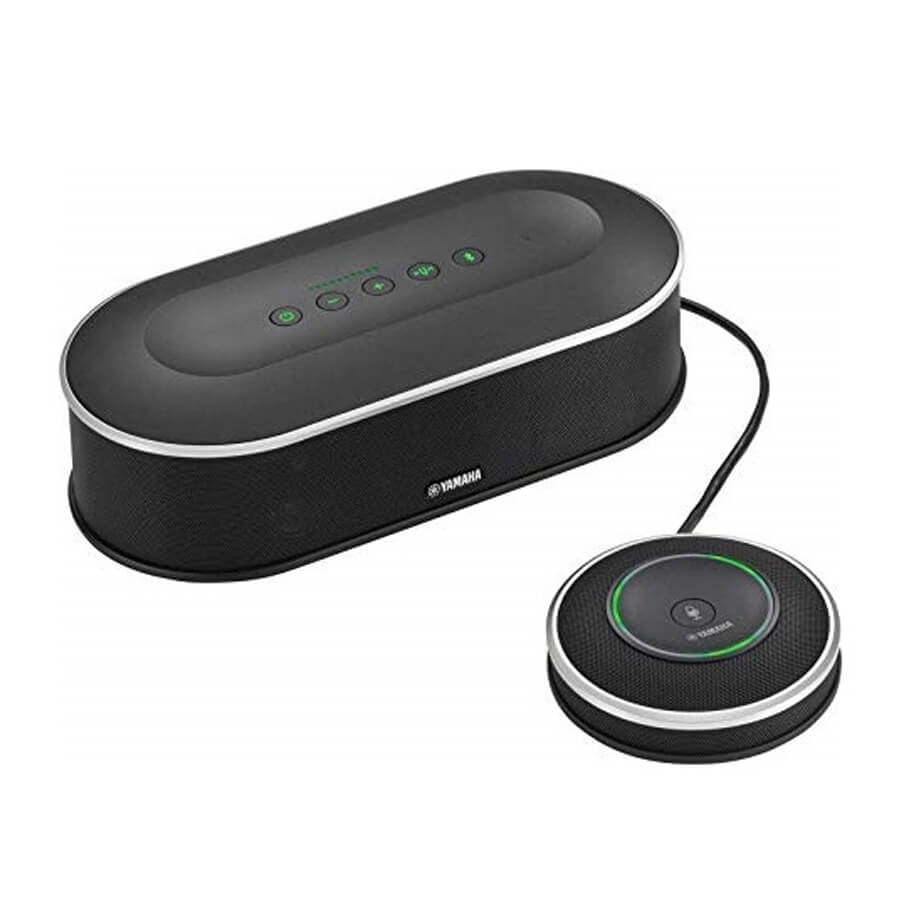

Unied Communications Microphone And Speaker System YAMAHA YVC-1000
- Hỗ trợ kết nối cổng USB 2.0, Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini jack).
- Âm thanh IN/OUT (stereo RCA pin), Cổng loa ngoài (RCA pin) x 2, cổng nguồn, cổng microp.
- Microphone: IN/OUT.
- 01 loa, công suất: 95 dB (0.5 m (1.6 ft).
- Cable (5m).
- Mở rộng đến 4 Micro x YVC-1000EX.
Thông số kỹ thuật
| General | |
| Interface | Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication), Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), Exterrnal speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals |
| Power consumption (max) | 20W (one connected microphone), 35W (five connected microphones) |
| Radio interference standard | FCC (Part 15B) Class A, ICES-003 |
| Operating environment | Temperature: 0-40°C (32 to 104°F) Humidity: 20 to 85% (no condensation) |
| Dimensions | Control Unit (WxHxD): 332x95x162 mm (13.1x3.74x6.38 in) Microphone (WxHxD):136x36x136 mm (5.35x1.42x5.35 in) |
| Weight | Control Unit: 1.8kg (4.0 lbs), Microphone: 0.4kg (0.9 lbs) |
| Power source | 120V (60Hz) |
| Supported OS | OS: 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7 Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later |
| Bluetooth | Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: SBC, Msbc Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft) |
| NFC | Compatible devices: NFC-compatible Android devices, version 4.1, 4.2, 4.3 and 4.4 |
| Voice guidance | English, Japanese, Chinese, Korean, French, Spanish, German |
| Accessories | Power cable (3m), USB cable (5m), microphone cable (5m), Quick start cuide |
| Others | Firmware update (transfer from PC through USB) |
| Audio | |
| Microphone unit | Unidirectional x 3 |
| Speaker unit | Full-range x 1 |
| Maximum volume | 95dB (0.5m) |
| Frequency bandwidth | For sound pickup: 100 to 20000Hz, For playback: 100 to 20000Hz |
| Signal processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning |
- Bảo hành: 12 tháng.
