8-Port 10/100/1000Mbps PoE Switch IONNET IGS-804 (65Watt)

Trang Chủ >> Thiết bị mạng >> Switch PoE IONNET >> 8-Port 10/100/1000Mbps PoE Switch IONNET IGS-804 (65Watt)
Mã số:04220026

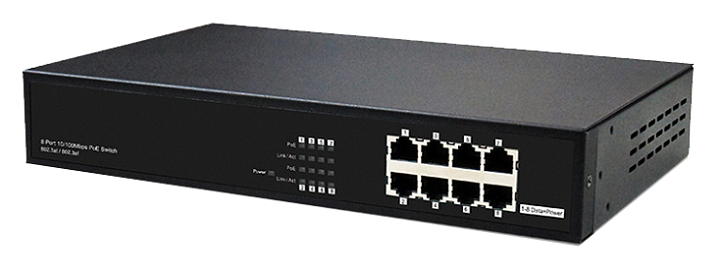

8-Port 10/100/1000Mbps PoE Switch IONNET IGS-804 (65Watt)

8-Port 10/100/1000Mbps PoE Switch IONNET IGS-804 (65Watt)

-       Bao gồm 4-Port PSE/PoE, công suất 65 Watt.

-       8 port Gigabit 10/100/1000Mbps Switch with 4 port IEEE802.3af/ 802.3at (PoE+).

-       Complying with IEEE 802.3 10Base-T.

-       Complying with IEEE 802.3u 100Base-TX.

-       Complying with IEEE 802.3ab 1000Base-T.

-       Complying with 802.3x Flow Control.


-       IGS-804(65) is 8 10/100/1000Mbps port Power over Ethernet switch which consists of 4 PSE/PoE ports. The models compliant to POE IEEE 802.3at, it defines new green power saving idea on PSE Port. That device application: Wireless Access Point; PoE client device; IP phone and IPcam system. It can Power 4 PoE client devices in same time.


-       Providing 8 ports of 10/100/1000Mbps TX Switching port.

-       Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.

-       Complying with 802.3x Flow Control.

-       4 Ports PSE/ PoE function, compliant with IEEE-802.3af class3 and IEEE802.3at.

-       Supporting the power up to Max 30Watt for each PSE/PoE port.

-       Supporting the flow control: Back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode.

-       All ports support Auto-MDIX function.

-       Being dedicated 2000Mbps Full-duplex bandwidth to the each port.

-       Broadcast storm control and supporting store & forward operation.

-       Non-blocking & Non-head-of-line blocking full-wire speed forwarding

-       Auto-learning networking configurations.

-       Built-in 2K MAC learning table, 96K byte buffer memory.

-       Filtering/ Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/ 14,880pps

-       Supports packet length 1522 bytes/ Maximum 1536bytes.

-       Jumbo frames: 9K

-       Status LEDs: System Power, Link/ Activity, PoE/ PSE on line

-       Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/ STP; 100Base-TX Cat. 5 UTP/ STP, 1000BASE-T Cat. 5E UTP/ STP.

-       Safety and EMI Certificates: CE and FCC

-       Smart plug and play.

-        Operating Temperature: 0ºC ~ 45ºC.

-       Storing Temperature: -20ºC ~ 90ºC.

-       Humidity: 10% ~90% RH (Non-condensing).

-       Maximum Supply PoE Power per device: 150Watt.

-       Power Consumption: 8Watt.

-       Dimension: 263 x160 x 44 mm (1U high).

-       Weight: 1350g.



IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE802.3ab 1000BaseT

IEEE802.3af/ 802.3at


Number of Ports:

8 10/ 100/ 1000BaseT with RJ-45 Connector

4 PSE ports with RJ-45 connectors

Data Transfer Rate




Fast Ethernet:

100Mbps/ Half-Duplex

200Mbps/ Full-Duplex


2000Mbps/ Full-Duplex

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/ STP, up to 100 m

100BaseTX Cat. 5 UTP/ STP, up to 100 m

1000Base T cat 5,6 UTP, up to 100m

Led Indicators

Per Port:

(TX): 10/100M Link/ Act, 1000M, PoE

Per Unit: Power

Operating Temperature

0 to 45ºC

Storage Temperature

-20 to 90ºC


10 to 90% RH (non-condensing)


FCC Class A, CE

Maximum Supply PoE per Device

65 Watt

Power Consumption

8 Watt


263 x 160 x 44 mm



-       Sản xuất tại Taiwan.

-       Bảo hành: 12 tháng.

Giá: Vui lòng gọi
