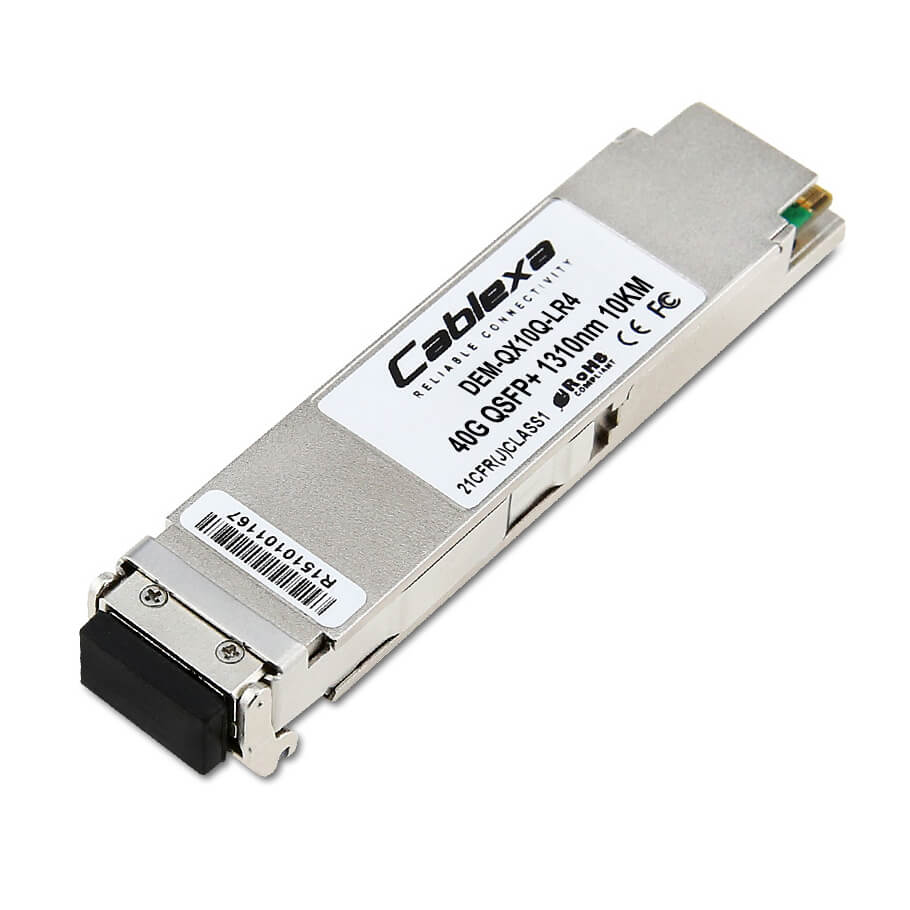

Transceiver 40G BASE-LR4 Single-mode, 10km QSFP+ D-Link DEM-QX10Q-LR4
-40GBASE-LR4 Single-mode QSFP+ Transceiver, 10km (For use on DXS-3600-EM-4QXS module).
-D-Link’s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet.
-The D-Link 40GBASE QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Quad Small Form-factor Pluggable Plus Format
-The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors,which integrate four transmitting and four receiving channels.
-QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.
Hot Pluggable
-All D-Link transceivers are hot pluggable.
-You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time.
-This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
40G Ethernet speeds
-The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s.
-This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Digital Diagnostics Monitoring (DDM)
-All 40G QSFP+ modules feature DDM real time monitoring of critical parameters, including transmitted and received power, temperature, and voltage.
-This allows for convenient monitoring of the module’s fiber connection and ensures that network connection issues are detected early.
Technical Specifications
| Transceiver Type | QSFP+ |
| Fiber Media support | Single-mode |
| Distance Capacity | 10 km |
| Compliant Standard | IEEE 802.3ba |
| Connector | Duplex LC connector |
| Single/Bi Direction | Single direction |
| Wavelength | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Output Optical Power (TX) | Max.: 8.3 dBm, Min.: -4.0 dBm |
| Input Optical Power (RX) | Max.: 3.5 dBm, Min.: -13.7 dBm |
| Sensitivity | -11.5 dBm |
| Cable Type | Single mode 9/125 um fiber cable |
| Supported Features | Hot Pluggable |
| MSA Compliant | |
| RoHS Compliant | |
| DDM (Digital Diagnostics Monitoring) | |
| Power | 3.3 V |
| Max. Input Current | 1.13 A |
| Min. Power Budget | 7.5 dB |
| Max. Power Budget | 19.8 dB |
| Heat Generated | 13.424 KJ/h |
| Emission (EMI) and Safety Certifications | FCC Class B |
| CE Class B | |
| VCCI Class B | |
| FDA/CDRH | |
| TUV | |
| CSA | |
| Dimensions | 118 x 18.35 x 12.9 mm |
| Weight | 40g |
-Bảo hành: 36 tháng.
