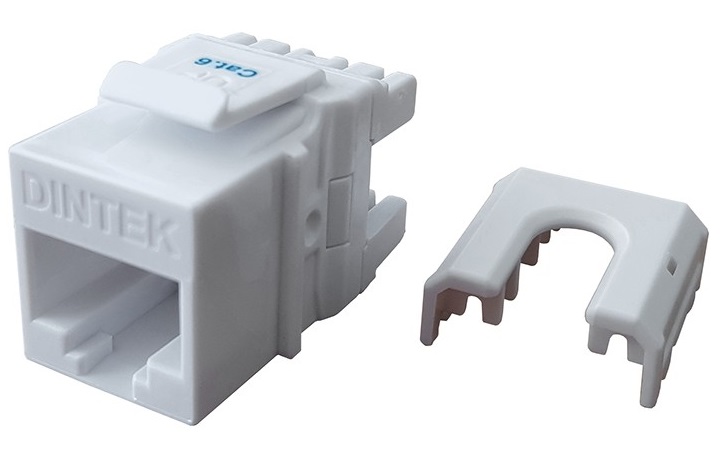

Modular Jack-Ổ cắm Dintek CAT.6 Keystone Jack (1305-04042)

Modular Jack-Ổ cắm Dintek CAT.6 Keystone Jack (1305-04042)

-         Modular Jack - ổ cắm CAT.6 Keystone Jack, Krone type, mặt nhấn cáp góc 90 độ.

-         Cat.6 horizontal type Keystone E-Jack, T568A/ B, white.

-         Product code: 1305-04042

Industry Standard:

-         UL, listed

-         Meets FCC parts 68

-         ANSI/TIA/ EIA-568B

-         ISO/IEC 11801

-         ETL verified TIA/EIA T568B.2-1: Cat.6 channel link transmission performance

Electrical:

-         Current rating:1.5 Amps

-         Insulation resistance:500Mega-ohms min.

-         Contact resistance:20 Milli-ohms max.

-         DC resistance:0.1 ohms max.

-         Data transmission rates up to 250Mbps

Physicals:

-         IDC connector accept 22-26 AWG solid wire

-         Jack wiring:50 u” gold plated over 100 u” nickel

-         Housing:High impact flame retardant plastic UL94V-0 rated

-         IDC connector suitable for 110 punch down and Krone tool

-         Sản xuất tại Taiwan.
