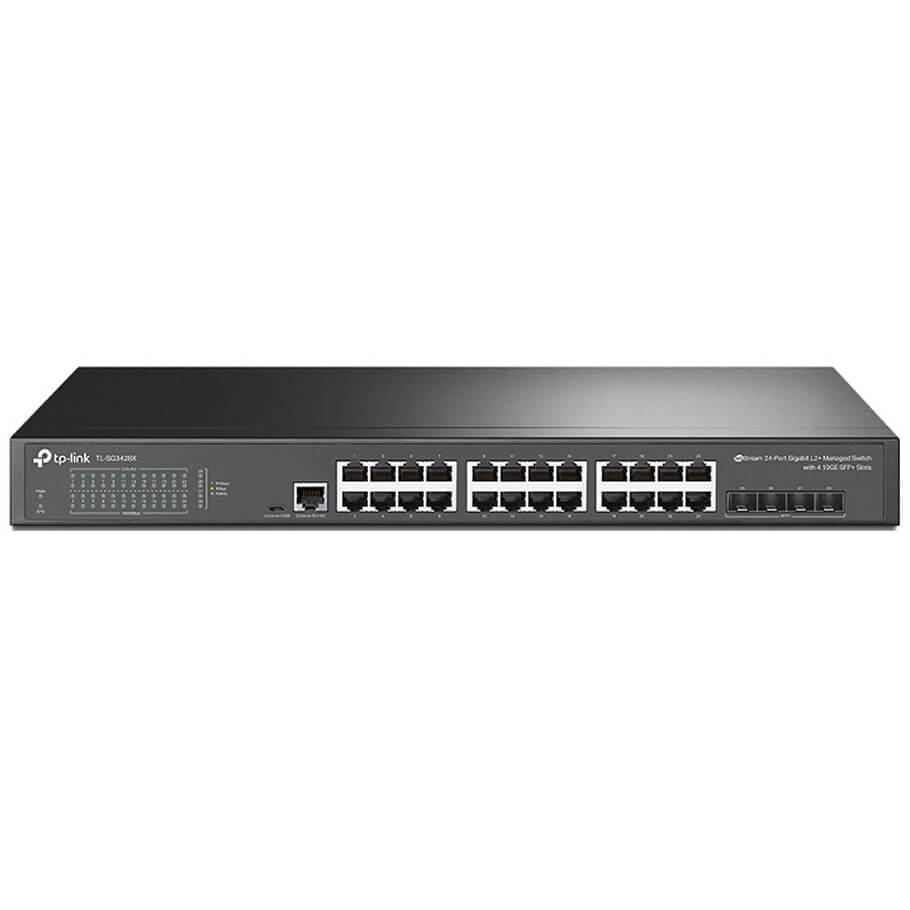

JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots TP-LINK TL-SG3428X
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Đặc tính kỹ thuật
| Hardware | |
| Interface | 24× 10/100/1000 Mbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 23.6 W (110V/60Hz) |
| Max Heat Dissipation | 80.353 BTU/h (110 V/60 Hz) |
| Performance | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Jumbo Frame | 9 KB |
| Software | |
| Quality of Service | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling Bandwidth Control Smoother Performance Action for Flows |
| L2 and L2+ Features | Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring |
| L2 Multicast | IGMP Snooping IGMP Authentication MLD Snooping MVR Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | VLAN Group 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Voice VLAN |
| Access Control List | Support |
| Security | IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control 802.1X AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| L3 Features | 16 IPv4/IPv6 Interfaces Static Routing Static ARP Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay |
| Management | Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning) |
- Bảo hành: 36 tháng.
