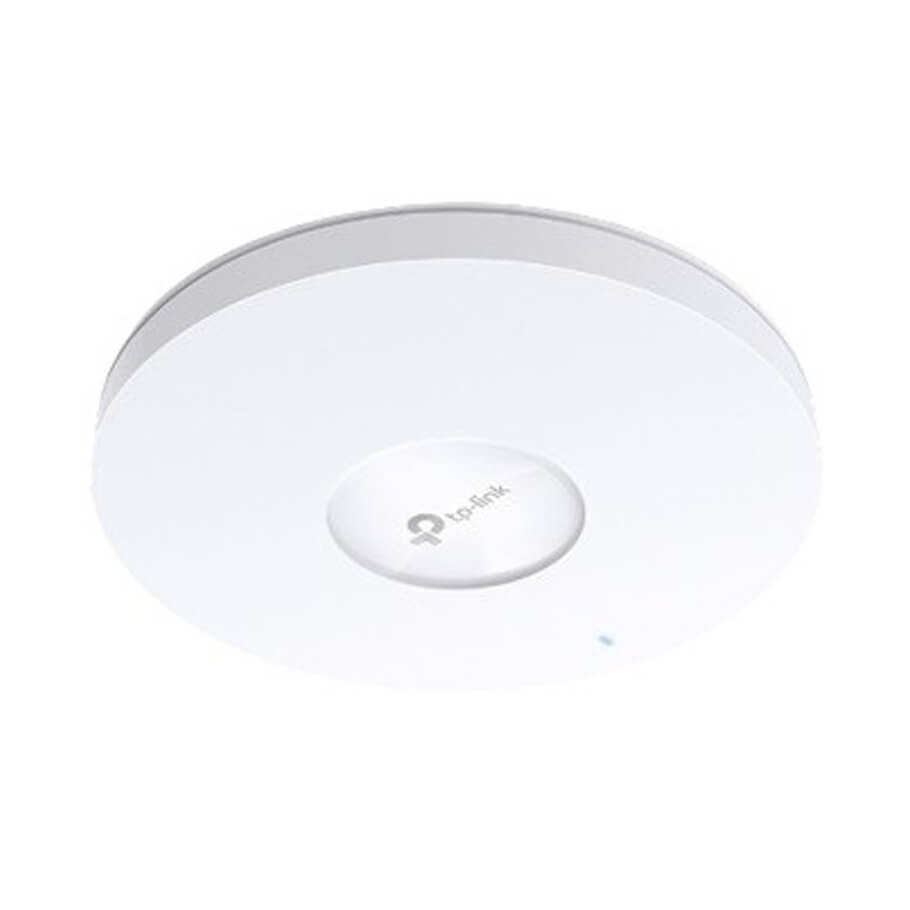

0916 287 068 AX3000 Ceiling Mount WiFi 6 Access Point TP-LINK EAP650
AX3000 Ceiling Mount WiFi 6 Access Point TP-LINK EAP650
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 2402Mbps on 5GHz totals 2976Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | - 802.3at PoE -12V DC (Power Adapter included) (EU Version: 12V/1.0A DC. US Version: 12V/1.5A DC). |
| Power Consumption | EU: 13.5W US: 14.7W |
| Dimensions (W x D x H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni - 2.4 GHz: 2× 4 dBi - 5 GHz: 2× 5 dBi |
| Mounting | - Ceiling /Wall Mounting (Kits included) - Junction Box Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | - 5GHz: Up to 2402 Mbps - 2.4GHz: Up to 574 Mbps |
| Wireless Functions | - 1024-QAM - 4× Longer OFDM Symbol - OFDMA - Multiple SSIDs (Up to 16 SSIDs, 8 for each band) - Enable/Disable Wireless Radio - Automatic Channel Assignment - Transmit Power Control (Adjust Transmit Power on dBm) - QoS(WMM) - MU-MIMO - HE160 (160 MHz Bandwidth)‡ - Seamless Roaming § - Omada Mesh§ - Band Steering - Load Balance - Airtime Fairness - Beamforming - Rate Limit - Reboot Schedule - Wireless Schedule - Wireless Statistics based on SSID/AP/Client |
| Wireless Security | - Captive Portal Authentication§ - Access Control - Wireless Mac Address Filtering - Wireless Isolation Between Clients - SSID to VLAN Mapping - Rogue AP Detection - 802.1X Support - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | - CE: - FCC: |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | - Omada Hardware Controller (OC300) - Omada Hardware Controller (OC200) - Omada Software Controller - Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | - Operating Temperature: 0–40 ℃ (32–104 ℉) - Storage Temperature: -40–70 ℃ (-40–158 ℉) - Operating Humidity: 10–90% RH non-condensing - Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
