Modular Jack COMMSCOPE/AMP CAT5 Unshielded(6-557315-3)

Modular Jack COMMSCOPE/AMP CAT5 Unshielded(6-557315-3)

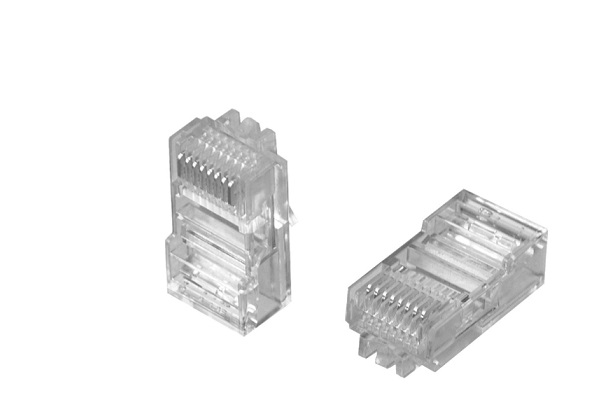

- Part Number: 6-557315-3

- COMMSCOPE/AMP Category 5 Modular Plug, Unshielded, RJ45, 26-24AWG, Solid.

Specifications

General Specifications

- ANSI/TIA Category: 5

- Cable Type: Round, unshielded

- Conductor Type: Solid, Stranded

- Interface: RJ45

- Positions/Loaded Contacts: 8/8

- Termination Type: IDC

Dimensions

- Compatible Cable Diameter, maximum: 5.1 mm

- Compatible Insulated Conductor Diameter, maximum: 0.99 mm

- Compatible Insulated Conductor Diameter, minimum: 0.86 mm

- Contact Plating Thickness: 1.27 µm

- Compatible Conductor Gauge, solid: 26–24 AWG

- Compatible Conductor Gauge, stranded: 26–24 AWG

Electrical Specifications

- Current Rating, maximum: 0.75A

- Insulation Resistance, minimum: 500 mOhm

- Safety Voltage Rating: 150 Vac

Material Specifications

- Contact Base Material Phosphor: Bronze

- Contact Plating Material: Gold

- Material Type: Glass filled polycarbonate

Mechanical Specifications

- Plug Insertion Life, minimum: 750 times

Environmental Specifications

- Operating Temperature: -10°C to +60°C

- Relative Humidity Up to 93%, non-condensing

- Safety Standard: UL 1863
