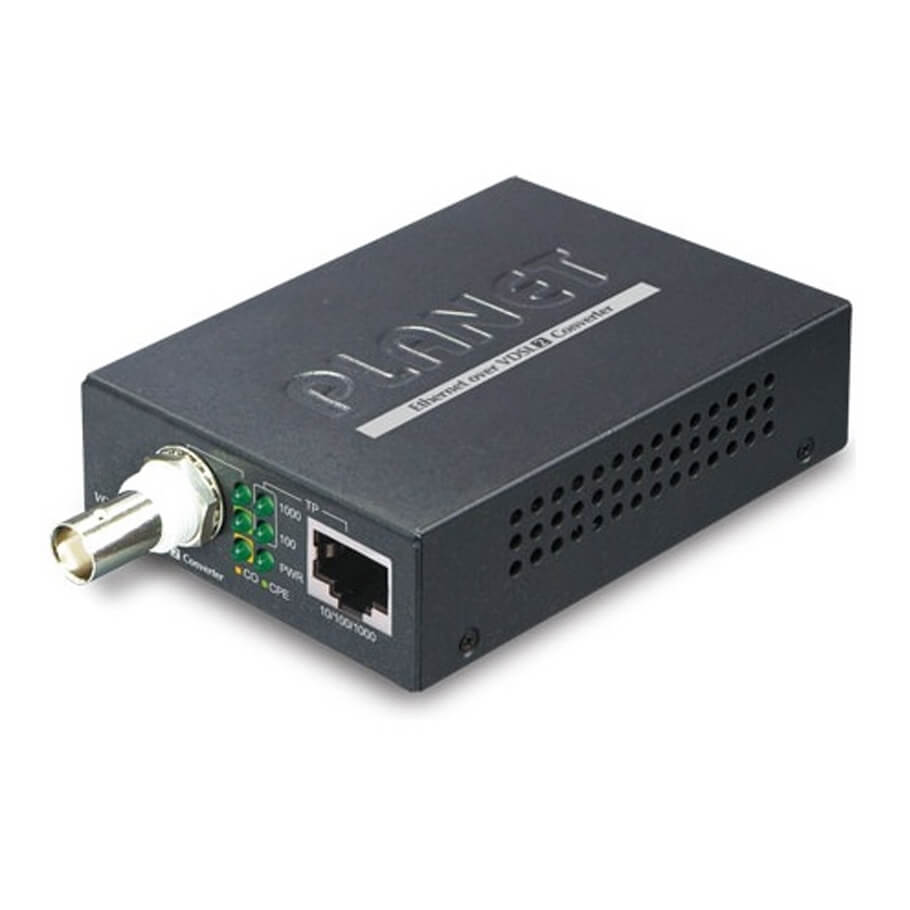

0916 287 068 1-Port 10/100/1000T Ethernet over Coaxial Converter PLANET VC-232G
1-Port 10/100/1000T Ethernet over Coaxial Converter PLANET VC-232G
- ITU-T G.993.5 G.Vectoring and G.INP.
- Upstream/Downstream bandwidth up to 200/100Mbps.
- CO/CPE mode selectable via DIP switch.
- Selectable target band plan and SNR margin.
- Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control.
- One BNC connector for VDSL connection.
- Uses existing RG59/RG6 coaxial cable.
- Used in pairs to extend Point-to-Point connection up to 1.4km.
- Supports a packet size of up to 1522 bytes, IEEE 802.1Q VLAN tag transparency.
- Advantage of minimum installation time (Simply by Plug-and-Play).
- Supports extensive LED indicators for network diagnosis.
- Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48).
- Compact in size and easy to install.
Đặc tính kỹ thuật
| Hardware Specifications | |
| TP interface | 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| VDSL Interface | - 1 BNC female Ethernet over Coaxial - Cabling Coaxial cable: 75 ohm RG-6/U cable, less than12Ω/1000 ft RG-59/U cable, less than 30Ω/1000 ft. - Maximum Distance Max. 1400m with data transmission (4,593ft.) |
| Functionality | DIP-1: Select CO or CPE mode DIP-2: Select G.INP or Interleaved mode DIP-3: Select Band Profile (Asymmetric or Symmetric) DIP-4: Select SNR of 12dB or 8dB |
| Dimensions (W x D x H) | 70 x 97 x 26 mm |
| Weight | 185g |
| Power Requirement | DC 5V, 2A external power |
| LED Indicators | Power: Green 1000BASE-T LNK/ACT: Green VDSL: Green CO: Green CPE: Green |
| Housing | Metal |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| System Specifications | |
| VDSL Compliance | VDSL-DMT ITU-T G.993.1 VDSL ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) ITU-T G.993.5 G. Vectoring ITU-T G.998 G.INP |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) ITU-T G.993.5 G.Vectoring and G.INP ITU-T G.998 |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Performance | |
| Coaxial Performance | Interleave(Upstream/Downstream: Mbps) Asymmetric (8dB): 200m ->88Mbps/168Mbps 400m ->75Mbps/160Mbps 600m ->59Mbps/129Mbps 800m ->32Mbps/110Mbps Asymmetric (12dB): 200m ->78Mbps/145Mbps 400m ->69Mbps/137Mbps 600m ->48Mbps/118Mbps 800m ->26Mbps/94Mbps Symmetric (8dB): 200m ->129Mbps/131Mbps 400m ->117Mbps/122Mbps 600m ->101Mbps/92Mbps 800m ->62Mbps/73Mbps Symmetric (12dB): 200m ->117Mbps/123Mbps 400m ->102Mbps/102Mbps 600m ->88Mbps/82Mbps 800m ->47Mbps/56Mbps G.INP(Upstream/Downstream: Mbps) Asymmetric (8dB): 200m ->95Mbps/200Mbps 400m ->82Mbps/175Mbps 600m ->59Mbps/151Mbps 800m ->37Mbps/122Mbps Asymmetric (12dB): 200m ->89Mbps/181Mbps 400m ->71Mbps/156Mbps 600m ->46Mbps/136Mbps 800m ->30Mbps/102Mbps Symmetric (8dB): 200m ->147Mbps/147Mbps 400m ->132Mbps/135Mbps 600m ->108Mbps/104Mbps 800m ->76Mbps/78Mbps Symmetric (12dB): 200m ->138Mbps/143Mbps 400m ->116Mbps/120Mbps 600m ->91Mbps/89Mbps 800m ->58Mbps/60Mbps |
| Environment | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
- Bảo hành: 24 tháng.
