Passive Infrared Sensor TAKEX PA-7012E

Trang Chủ >> Báo cháy-Báo trộm >> Báo động TAKEX >> Passive Infrared Sensor TAKEX PA-7012E
Mã số:13304631

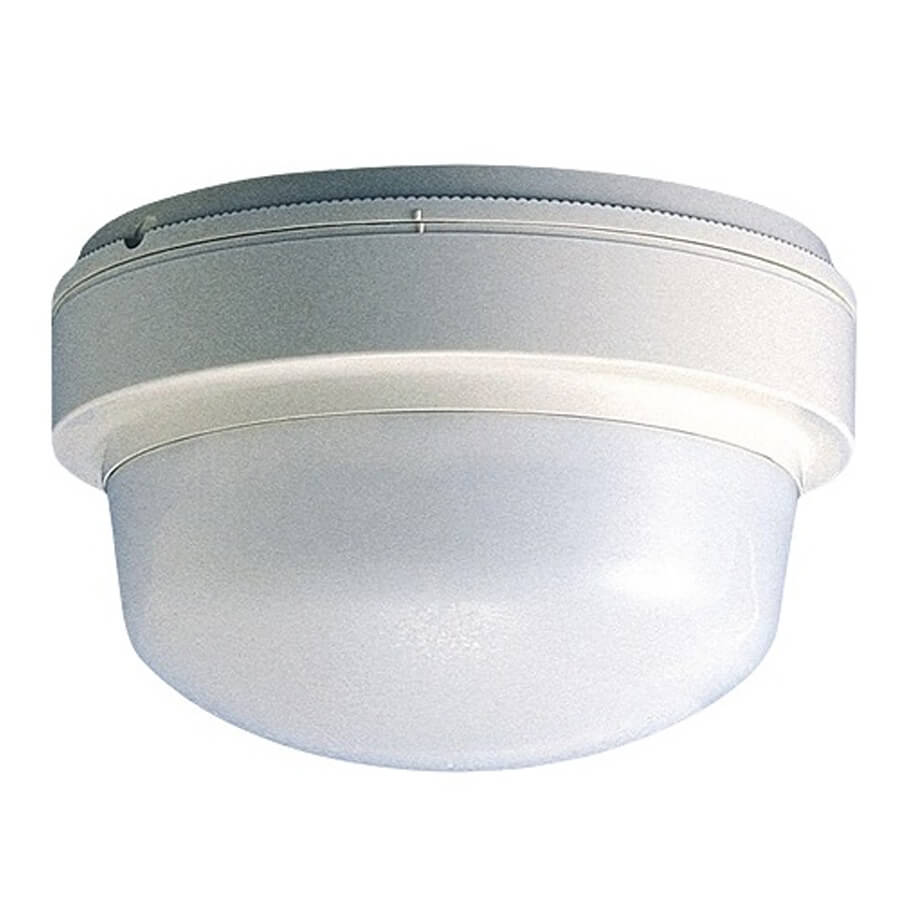

Passive Infrared Sensor TAKEX PA-7012E

Passive Infrared Sensor TAKEX PA-7012E

- General description

   + The PA-7000 series 'Digital-Quad' passive infrared sensors are the newest line of quad element PIR's, from the originator of quad passive infrared sensors. Each unit contains two dual element sensors which are linked by a digital central processing unit. This results in calculation of a true motion signal in order to initiate an alarm.

   + It can detect a human like pattern definition and reject other potential false alarm causes.

- Compensation circuit

   + Sensitivity of the unit is automatically adjusted relative to the environmental temperature.

   + The sensitivity becomes maximum at body temperature range and decreases when the temperature differential changed either higher or lower.This eliminates the need for seasonal manual adjustments.

- Alarm memory

   + Unit contains special circuitry to indicate that it has activated an alarm during its armed period.

- Remote control LED

   + Allows the walk test LED to be enabled/ disabled remotely through a control panel.

- Ceiling or wall mounting available

   + Flush mounting available as an option.

- Easy installation/location

   + Convenient twist lock base and built-in zone locator.

Thông số kỹ thuật

Model PA-7012E
Area Wide type
Coverage Max. 40' (12m), 90m2
Number of sensitive zone 56 (28 pair)
Mounting position Indoor ceiling or wall
Supply voltage 9V to 18V DC, No-polarity
Power consumption 15mA (at 12V), 20mA (at aim adjustment)
Alarm output 0.1A, 30V, 1C (SPDT) Reset: 2 sec. +/-1sec.
Tamper output 0.1A, 30V, 1b (SPST)
Ambient temperature range +14F to +122F (-10C to + 50C)
Memory function Control at terminal 8 : Lights up for memory indication
LED control Control at terminal 9 or built-in switch
Weight 11.6 oz (330g)

- Xuất xứ: Nhật Bản.

- Bảo hành: 18 tháng.


Giá: 2.821.000 VND (Đã bao gồm VAT)
