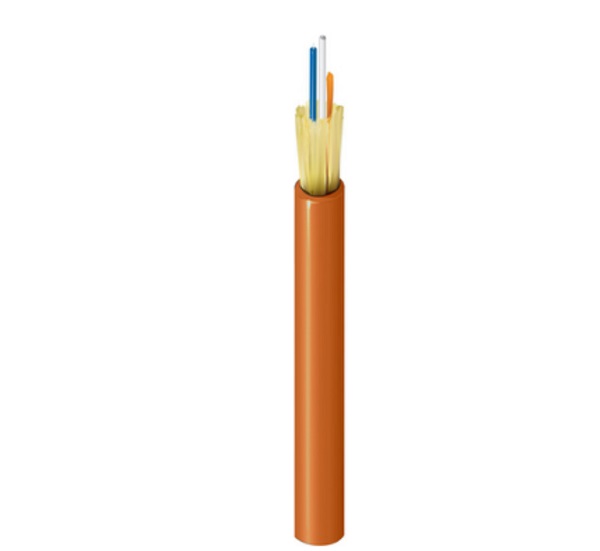

Cáp quang chuẩn OM3 4 sợi BELDEN GUMTD04.052100
- Part number: GUMTD04.052100
- Cáp quang Belden trong nhà/ngoài trời, đệm chặt, chuẩn OM3, 4 sợi.
Đặc tính kỹ thuật
| Construction | |
| Fiber Cable Construction | |
| Fiber Type | OM3 |
| Fiber Count | 4 |
| Buffer Specification | |
| Fiber Type | OM3 |
| Buffer Construction | Tight |
| Buffer Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Buffer Diameter | 0.9 mm |
| Cable Core Water Tight | Yes |
| Cable Core Waterblocking | Waterblocking Glass Yarns |
| Bulk Cable Weight | 27 kg/km |
| Jacket Specifications | |
| Number of Jackets | Single Jacket |
| Type of Armor | Non-Armored |
| Outer Jacket Specifications | |
| Outer Jacket | |
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nominal Diameter | 5.4 mm |
| Ripcord | No |
| Optical Characteristics | |
| Max. Attenuation at 1300 nm | 0.9 dB/km |
| Max. Attenuation at 850 nm | 2.9 dB/km |
| Temperature Range | |
| Operating Temperature Range | -30 °C to +70 °C |
| Installation Temperature Range | -5 °C to +50 °C |
| Storage Temperature Range | -30 °C to +70 °C |
| Standards | |
| UL Rating/Flame Test | Non-UL Rated |
| IEC Flammability | IEC 60332-1-2 |
| Reaction to Fire - Bundle Flame Test | IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity | 10 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance | 60% |
| CPR Euroclass | Dca-s1,d1,a1 |
| REACH | Compliant |
| ISO/IEC Compliance | IEC 60794 |
| EU Directive 2011/65/EU (RoHS2) | Compliant |
| UV/ Sunlight Protection | Yes |
