Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XND-L6080RV/VAP

Trang Chủ >> Camera quan sát >> Camera IP WISENET >> Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XND-L6080RV/VAP
Mã số:02069666

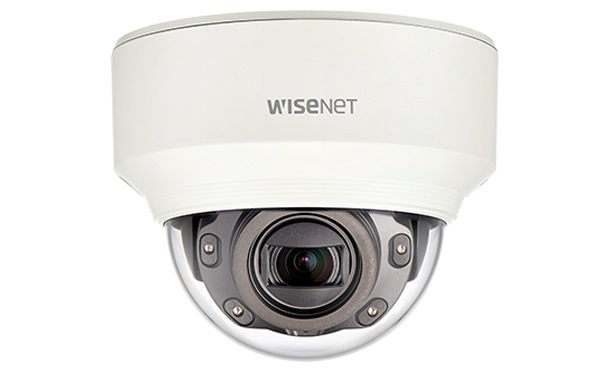

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XND-L6080RV/VAP

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XND-L6080RV/VAP

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ lên đến 256GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: 0.1Lux (Color), 0Lux (IR LED on) (B/W).

- Ống kính: 3.2 ~ 10mm (motorized varifocal).

- Phạm vi Pan/ Tilt/ Roate: 0° ~ 354° / 0° ~ 67° / 0° ~ 355°.

- Tầm quan sát hồng ngoại: 20 mét.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng giảm nhiễu số SSNRV (2D+3D noise filter).

- Chức năng ổn định hình ảnh số DIS.

- Chức năng cân bằng ánh sáng trắng ATW.

- Hỗ trợ LDC (Lens Distortion Correction).

- Hỗ trợ WiseStream II.

- Tiêu chuẩn chống va đập: IK08.

- Chức năng cấp nguồn qua mạng PoE.

- Kích thước: Ø140.8 x 113.0mm.

- Trọng lượng: 690g.

Đặc tính kỹ thuật

VIDEO
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M
Effective Pixels 1,945(H) x 1,097(V) 2.13M
Scanning System Progressive Scan
Min. Illumination Color: 0.1Lux, B/W: 0Lux (IR LED on)
S / N Ratio 50dB
Video Out CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB: micro USB type B, 1280 x 720 for installation
LENS
Focal Length (Zoom Ratio) 3.2~10mm (3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide) ~ F2.9(Tele)
Angular Field of View H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type DC auto iris, P-Iris / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length 20m (65.62ft)
Camera Title Off / On (Displayed up to 85 characters)
- W/W: English / Numeric / Special characters
- China: English / Numeric / Special / Chinese characters
- Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (Input from fog detection) / Manual
Motion Detection Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
Contrast Level adjustment
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway view : 90˚/270˚
Alarm Triggers Motion detection, Video analytics, Network disconnect, Tampering, Defocus detection, Motion detection
Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265 / H.264: Max. 60fps at all resolutions, MJPEG : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea)
WiseStream II Support
Video Quality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 5 profiles)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at unicast mode
Edge Storage SD/SDHC/SDXC 1slot (up to 256GB)
- Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer
- Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 9, Mac OS X only.  Plug-in Webviewer
- Supported Browser: MS Explore 11, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Vandal Resistance IK08
ELECTRICAL
Input Voltage / Current PoE(IEEE802.3af, Class3)
Power Consumption Max. 8W, Typical 4W
MECHANICAL
Color / Material Ivory / Aluminum
Dimensions Ø140.8 x 113.0mm
Weight 690g

- Hãng sản xuất: Hanwha Techwin Việt Nam.

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
