Bộ phát tiếng TOA EV-700

Trang Chủ >> Âm thanh thông báo >> Âm thanh TOA >> Bộ phát tiếng TOA EV-700
Mã số:23020333

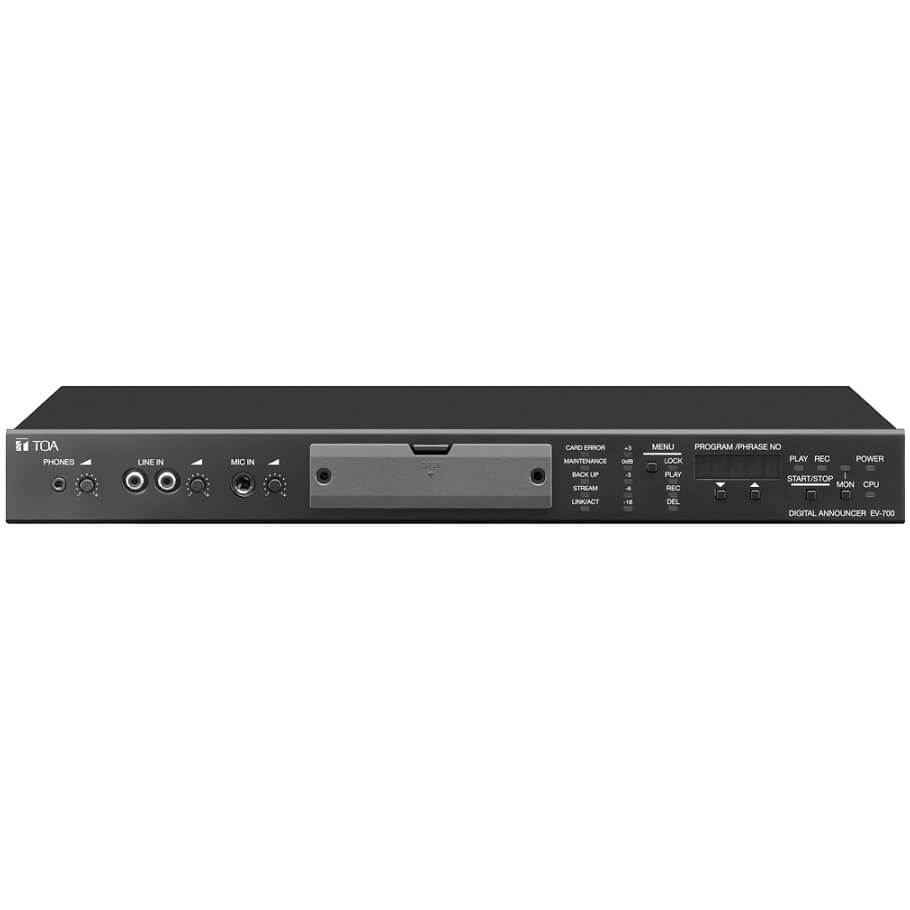

Bộ phát tiếng TOA EV-700

Bộ phát tiếng TOA EV-700
The EV-700 is a digital announcing machine capable of recording/playback. It is ideal for periodical, attention calling, and guide broadcasts uses in commercial and public facilities. Using the Setting Software makes it easy to perform sound source rewriting, settings, and controls. Preset sound sources like chime sound and Westminster chime are stored on the supplied memory card. The EV-700 can be mounted in an EIA-Standard equipment rack with the optional rack mounting bracket (1U size).
Đặc tính kỹ thuật

Power Source Supplied from an external 24VDC/ 400 mA power supply, Removable terminal block (2 pins) or from an optional AD-246 AC adapter
Power Consumption 10 W
Wave Format 44.1 kHz/32 kHz sampling rate, 16 bits PCM, WAV file (monaural)
Sound Source Rewriting Method LAN data transfer/Analog recording/
Direct write to memory card using the setting software
Audio Input MIC: -55 dB (microphone input volume control in maximum position), 600 Ω, unbalanced, φ6.3 phone jack (2P)
LINE (rear): -20 dB (line input volume control in maximum position), 10 kΩ, unbalanced, Removable terminal block (12 pins)
LINE (front): -29 dB (line input volume control in maximum position), 10 kΩ, unbalanced, RCA pin jack
Audio Output LINE 1, 2: 0 dB, 600 Ω, unbalanced, Removable terminal block (12 pins)
Headphone: 0 dB, 100 Ω, monaural, φ3.5 mini jack (3P)
Frequency Response 20 Hz - 20 kHz ±3 dB (1 kHz)
50 Hz - 14 kHz ±3 dB (IT-450 mounted, 1 kHz)
Distortion 0.3 % or less (1 kHz, rated output)
Storage Media Compatible with CompactFlash(TM) specification Memory card
Number of Mountable Memory cards 2 (1 Memory card containing preset sound sources is supplied.)
Backup operation available when 2 cards are mounted.
Number of Recordable Phrases 32768
Maximum Recording Time About 3 hours (at 44.1 kHz sampling rate) or about 4 hours (at 32 kHz sampling rate)
Audio Output Method Single channel monaural
Number of Playback Program Direct mode: 16 programs
Binary mode: 256 programs
1 emergency message takes precedence over the above programs and is played back.
R.E.M. (Recording Endless Message) playback can be performed.
Control Input Activations 1 - 16, playback, pause, recording, erasure/clear, emergency playback, emergency recording, emergency pause
No-voltage make contact input, pulse make length: 50 ms or more, open voltage: 30 V DC, short-circuit current: 10 mA, Removable terminal block (12 pins, 16 pins)
Control Output Shorting outputs 1 - 8 (busy), Error: contact capacity: 30 V DC, 0.5 A, Removable terminal block (8 pins)
Network I/F 100BASE-TX
Network protocol TCP/IP, UDP, HTTP, FTP
Connector RJ45 connector
Operating Display 7-segment LED, 5 digits
Operating Temperature 0 ℃ to +40 ℃ (32 F to 122 F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum, black, 30 % gloss, paint
Case: Pre-coated steel plate, black, 30 % gloss
Dimensions 420 (W) x 44 (H) x 222 (D) mm (16.54' x 1.73' x 8.74')
Weight 2.4 kg (5.29 lb)
Accessory Memory card (Containing prerecorded audio files) …1, Rubber foot …4, Removable terminal plug (2 pins) …1, Removable terminal plug (8 pins) …2, Removable terminal plug (16 pins) …2, Removable terminal plug (12 pins) …2, Front cover fixing screw …2
Option AC adapter: AD-246
Rack mounting bracket: MB-15B

-Sản xuất tại Nhật Bản.
-Bảo hành: 12 tháng.

Giá: 33.345.000 VND (Đã bao gồm VAT)
