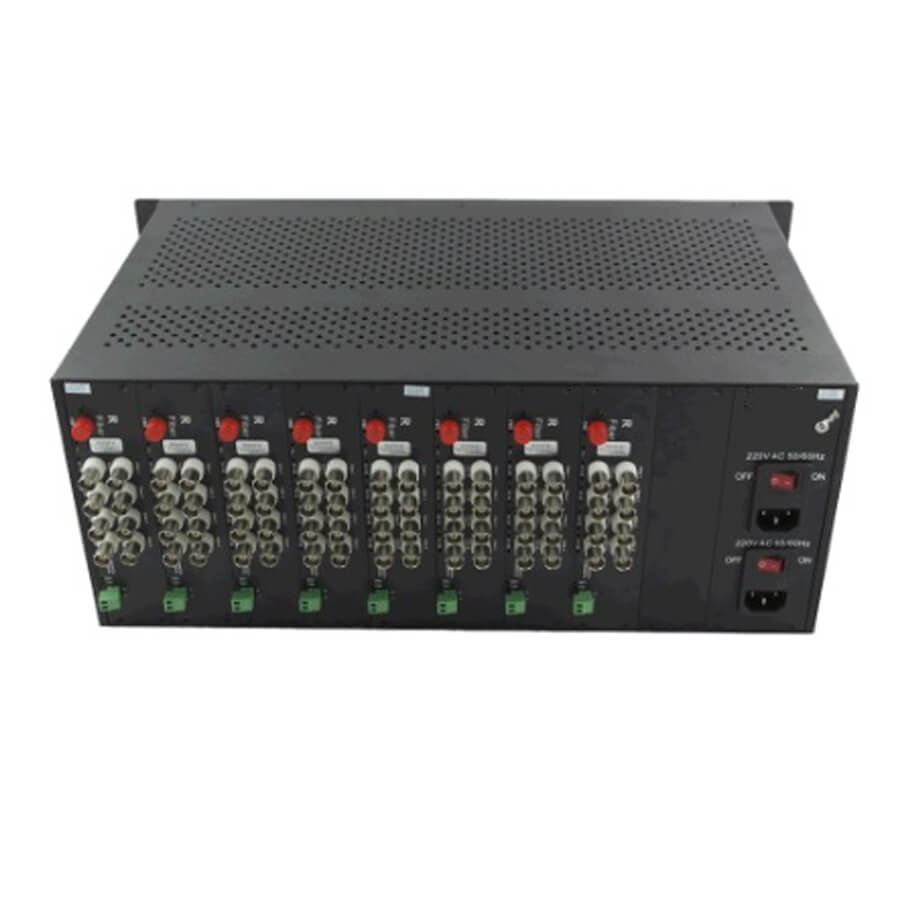

4U Rackmount Chassis for Video Converter BT-4U-D220

4U Rackmount Chassis for Video Converter BT-4U-D220

- 18 slot, Dual Power AC110V-220V, for converter card.


- Main and vice power equipment ensure system work smoothly.

- Function cards supports hot-plugging and each card realizes its corresponding function independently.

- Double power panel slot supports two power supply units backup for each other.

- It would enhance the reliability of the rack.

- Supports 220V/110V AC switch mode power supply (SMPS) design.

- Power supply and other parameter state indicator LED can monitor the operation condition of system.

- With stable performance, large capacity of power supply, and easy for management and maintenance.

- All of the modules installed in the chassis are hot-swap, which makes it unnecessary to power-down the chassis when replacing modules.

- Support telecommunication operation requirement completely.

Technology Specification

- Structure: 4U Rack.

- Ripple wave: ≤20mv.

- Power input: AC85~265V 50/60HZ or 48V.

- Power output: DC5V.

- Power adapter: dual power supply.

- Power: 95W.

- Operating Temperature: -10~55℃.

- Operating Humidity: 5%~95% .

- Storage Temperature: -40~70℃.

- Storage Humidity: 5%~95% no condensing.

- Dimension: 430mm x 260mm x 180mm for 4U Rack.

Giá: 7.965.000 VND (Đã bao gồm VAT)
