0916 287 068 Wireless Access Point CISCO C9105AXI-S
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng Cisco >> Wireless Access Point CISCO C9105AXI-S
Mã số:04212370

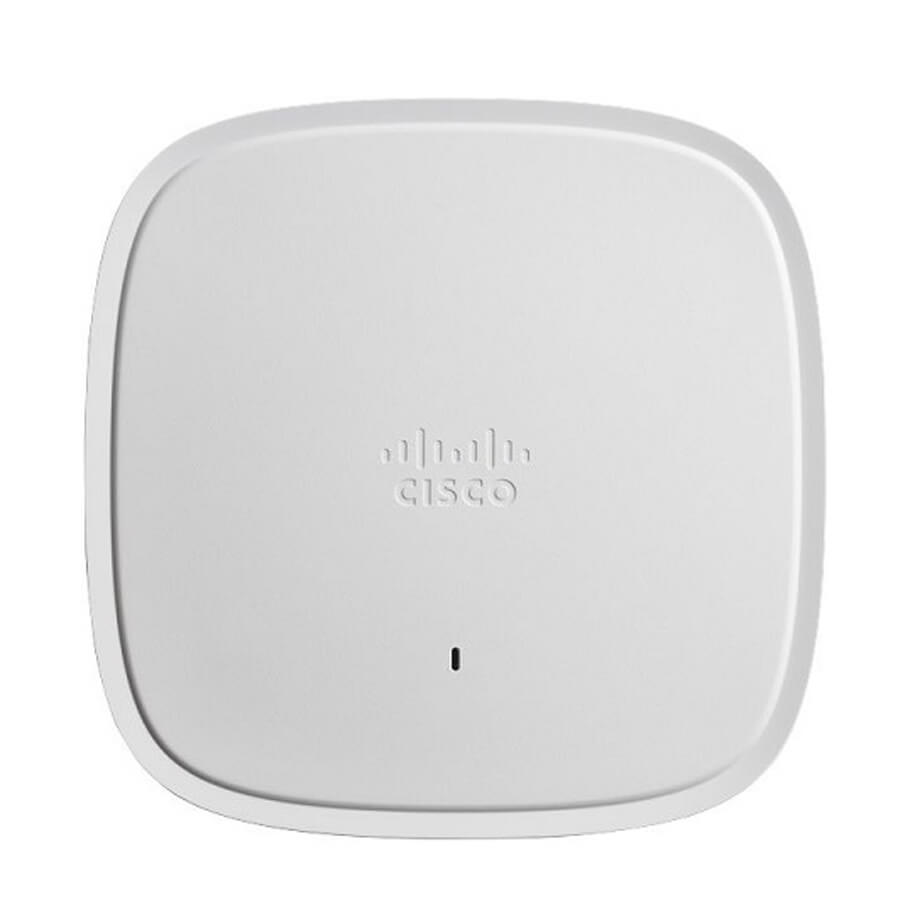

Wireless Access Point CISCO C9105AXI-S
- Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas.
- Integrated antenna:
+ 2.4GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth;
+ 5GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth.
- Interfaces: 1x 10/100/1000 Base-T (Ethernet) Uplink Interface, Management console port (RJ-45).
- Dimensions (W x L x H): 150 x 150 x 30 mm.
Specifications
| General | |
| Software | Cisco Unified Wireless Network Software Release 8.10.MR3 or later Cisco IOS XE Software Release 17.3.1, or later |
| Supported wireless LAN controllers | - Cisco Catalyst 9800 Series Wireless Controllers - Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | - 2x2 MIMO with two spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g - 20- and 40-MHz channels - PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
| 802.11ac | - 2x2 downlink MU-MIMO with two spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80- MHz channels - PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - WPA3 support |
| 802.11ax | - 2x2 uplink/downlink MU-MIMO with two spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80- channels - PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - WPA3 support |
| Integrated antenna | - 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth - 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | - 1x 10/100/1000 Base-T (Ethernet) Uplink Interface - Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 150 x 150 x 30 mm |
| Weight | 373.2g |
| Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) - Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) - Operating temperature: 32° to 122°F (0° to 50°C) - Operating humidity: 10% to 90% (noncondensing) - Operating altitude test: 40˚C, 9843 ft.(3000 m) |
| Feature | |
| Wi-Fi 6 (802.11ax) | The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard. |
| Uplink/downlink OFDMA | OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency. |
| Downlink MU‑MIMO technology | Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput. |
| BSS coloring | Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. |
| Target Wake Time | A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to 3x to 4x the savings achieved by 802.11n and 802.11ac. |
| Intelligent Capture | Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track more than 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks |
| Application Hosting on Catalyst 9100 Access | Application Hosting on Catalyst 9100 Access Points helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks. Utilizing the USB interface, containerized applications and hardware modules can be deployed to reduce cost and complexity. Adding Cisco DNA Center provides workflows and deployment-wide application lifecycle management. |
| Bluetooth 5 | Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics. |
| Cisco Embedded Wireless Controller | The 9105AX Series Wi-Fi 6 access points is available with a built-in controller. The Cisco Embedded Wireless Controller on Catalyst 9100 Access Points provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point so there is no added footprint or complexity. |
| Container support for applications | Container support enables edge computing capabilities for IoT applications on the host access point. |
- Bảo hành: 12 tháng.
Giá: 11.892.000 VND
(Đã bao gồm VAT)
