0916 287 068 Công tắc hẹn giờ kỹ thuật số THEBEN TR 642 top2 RC
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Công tắc hẹn giờ kỹ thuật số THEBEN TR 642 top2 RC
Mã số:13146019

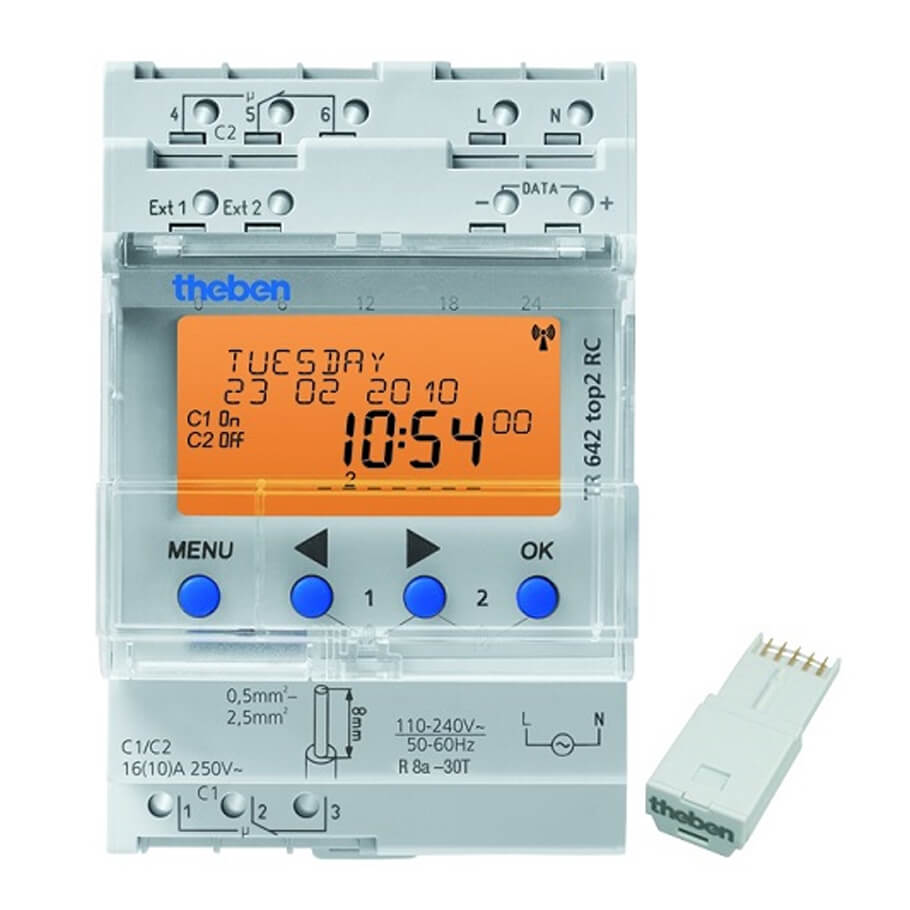

Công tắc hẹn giờ kỹ thuật số THEBEN TR 642 top2 RC
- Digital time switch with yearly and astronomical time program
- Time synchronisation via connection of external DCF or GPS antennas, additional posititioning for astronomical program with GPS
- 2 channels
- 2 external inputs
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (ON or OFF permanent switching)
- Extension module can be connected
- Memory card OBELISK top2 included in delivery
- DuoFix spring terminals
- For 2 conductors each
Specifications
| Model | TR 642 top2 RC |
| Operating voltage | 110 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Width | 3 modules |
| Installation type | DIN rail |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm |
| Program | Yearly program, Astronomical program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 2 |
| External inputs | 2 |
| Number of memory locations | 800 |
| Power reserve | 8 years |
| Switching capacity at 250 V AC, cos φ = 1 | 16A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 10A |
| Incandescent/halogen lamp load | 2600 W |
| Incandescent/halogen lamp load 120 V | 1300 W |
| Energy saving lamps | 37 x 7 W, 30 x 11 W, 26 x 15 W, 26 x 20 W, 11 x 23 W |
| Energy saving lamps 120 V | 18 x 7 W, 15 x 11 W, 13 x 15 W, 13 x 20 W, 11 x 23 W |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 180 W |
| LED lamp > 8 W | 200 W |
| Switching capacity min. | ca. 10 mA |
| Shortest switching times | 1 s |
| Time accuracy at 25 °C | ≤ ± 0,5 s/day (quartz) or DCF77/GPS |
| Time basis | Quartz/DCF77/GPS |
| Stand-by consumption | ~1.2 W |
| Capacity loss max. | 2.2 W |
| Memory card supplied | Yes |
| Type of connection | DuoFix spring terminals |
| Externe Antenne anschließbar | Yes |
| Display | LCD |
| Keyboards | 4 touch buttons |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 110-240 V AC |
| Ambient temperature | -30°C ... 45°C |
- Bảo hành: 12 tháng.
Giá: 7.774.000 VND
